NMB Technologies Corp.

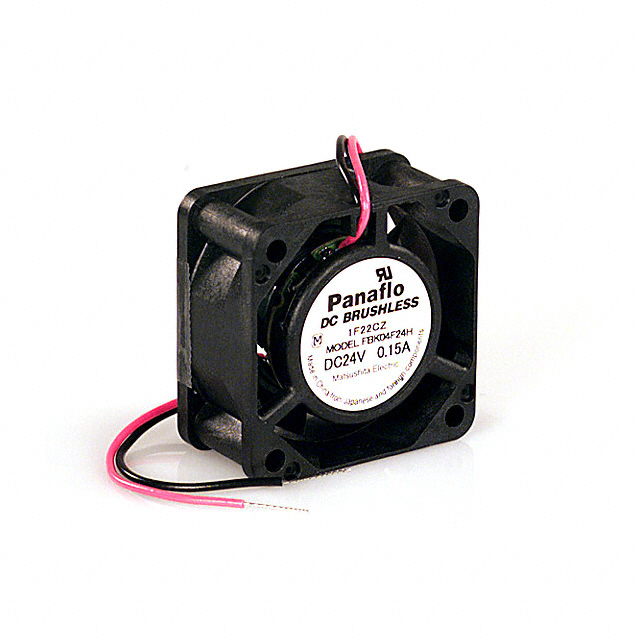

| Part Number | FBK04F24H | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 40X20MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7067 pcs | Data sheet | 1.FBK04F24H.pdf2.FBK04F24H.pdf3.FBK04F24H.pdf |
| Width | 20.00mm | Weight | 0.088 lb (39.92g) |
| Voltage Range | 14 ~ 27.6VDC | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.260 in H2O (64.8 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | FBK |
| RPM | 7500 RPM | Power (Watts) | 2.21W |
| Other Names | FBK 04F24H FBK-04F24H P9704 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 33.0 dB(A) | Material - Frame | Plastic |
| Material - Blade | Plastic | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.092A | Bearing Type | Ball |
| Approvals | UL | Air Flow | 6.7 CFM (0.188m³/min) |
