NMB Technologies Corp.

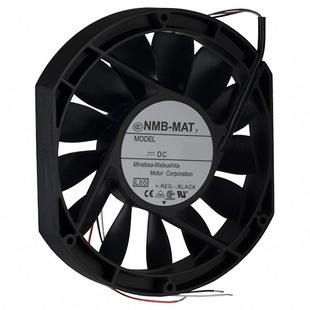

| Part Number | 5910PL-05W-B59-L50 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 172X25.4MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1751 pcs | Data sheet | 1.5910PL-05W-B59-L50.pdf2.5910PL-05W-B59-L50.pdf3.5910PL-05W-B59-L50.pdf |
| Width | 25.40mm | Weight | 1.102 lb (500.0g) |
| Voltage Range | 12 ~ 30VDC | Voltage - Rated | 24VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.657 in H2O (163.7 Pa) |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H | Series | 5910PL |
| RPM | 3500 RPM | Power (Watts) | 24.00W |
| Other Names | 15025PA-24N-AT-00 5910PL05WB59L50 P13431 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 62.5 dB | Material - Frame | Aluminum |
| Material - Blade | Plastic | Manufacturer Standard Lead Time | 14 Weeks |
| Lifetime @ Temp. | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | Speed Sensor (Tach) |
| Fan Type | Tubeaxial | Current Rating | 1A |
| Bearing Type | Ball | Approvals | CE, CSA, UL, VDE |
| Air Flow | 250.0 CFM (7.00m³/min) |
