NMB Technologies Corp.

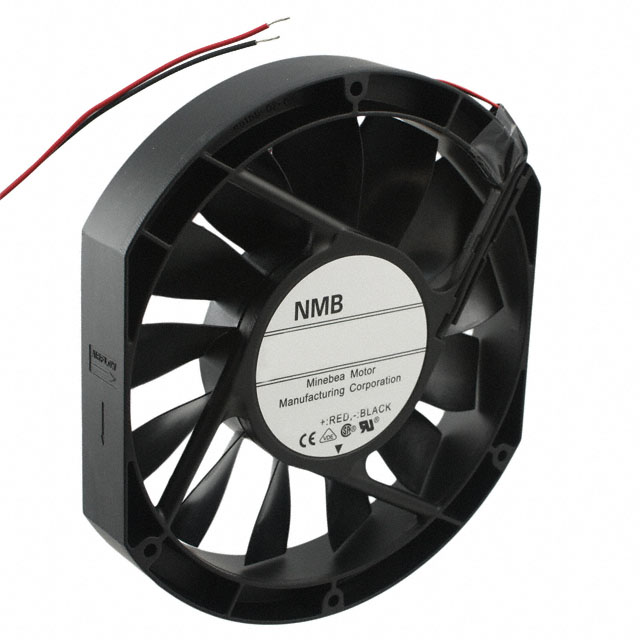

| Part Number | 5910PL-05W-B50-L00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 172X25.4MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1828 pcs | Data sheet | 1.5910PL-05W-B50-L00.pdf2.5910PL-05W-B50-L00.pdf3.5910PL-05W-B50-L00.pdf |
| Width | 25.40mm | Weight | 1.102 lb (500.0g) |
| Voltage Range | 12 ~ 30VDC | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.657 in H2O (163.7 Pa) |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H | Series | 5910PL |
| RPM | 3500 RPM | Power (Watts) | 24.00W |
| Other Names | 15025PA-24N-AA-00 5910PL05WB50L00 P12865 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 62.5 dB | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Frame | Aluminum | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 1A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 250.0 CFM (7.00m³/min) |
