NMB Technologies Corp.

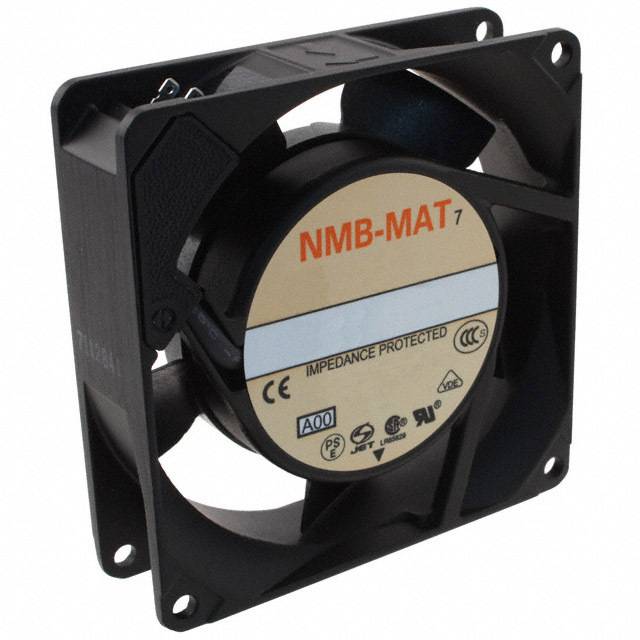

| Part Number | 3610PS-23T-B30-A00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 92X25MM 230VAC TERM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6432 pcs | Data sheet | 1.3610PS-23T-B30-A00.pdf2.3610PS-23T-B30-A00.pdf3.3610PS-23T-B30-A00.pdf |
| Width | 25.00mm | Weight | 0.66 lb (299.37g) |
| Voltage Range | - | Voltage - Rated | 230VAC |
| Termination | 2 Terminals | Static Pressure | 0.243 in H2O (60.7 Pa) |
| Size / Dimension | Square - 92mm L x 92mm H | Series | 09225PB |
| RPM | 3100 RPM | Power (Watts) | 10.00W |
| Other Names | 09225PB-B3L-EA-00 3610PS23TB30A00 P12885 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 39.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Aluminum | Material - Blade | Polycarbonate (PC), Fiberglass Reinforced |
| Manufacturer Standard Lead Time | 16 Weeks | Lifetime @ Temp. | 50000 Hrs @ 25°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.070A | Bearing Type | Ball |
| Approvals | CE, CSA, TUV, UL, VDE | Air Flow | 34.5 CFM (0.966m³/min) |
