NMB Technologies Corp.

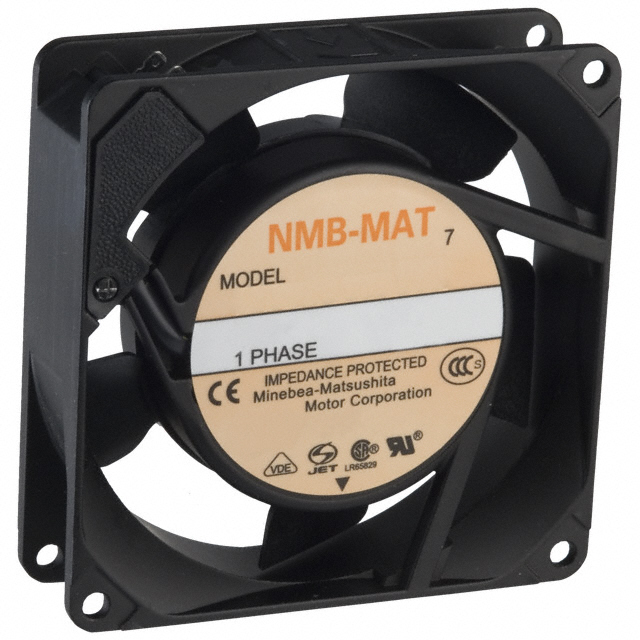

| Part Number | 3610PS-23T-B10-A00 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 92X25MM 230VAC TERM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6672 pcs | Data sheet | 1.3610PS-23T-B10-A00.pdf2.3610PS-23T-B10-A00.pdf3.3610PS-23T-B10-A00.pdf |
| Width | 25.00mm | Weight | 0.66 lb (299.37g) |
| Voltage Range | - | Voltage - Rated | 230VAC |
| Termination | 2 Terminals | Static Pressure | 0.080 in H2O (20.0 Pa) |
| Size / Dimension | Square - 92mm L x 92mm H | Series | 09225PB |
| RPM | 1800 RPM | Power (Watts) | 6.00W |
| Other Names | 09225PB-B3J-EA-00 3610PS23TB10A00 P13103 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 26.0 dB | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Frame | Aluminum | Material - Blade | Polycarbonate (PC), Fiberglass Reinforced |
| Manufacturer Standard Lead Time | 16 Weeks | Lifetime @ Temp. | 50000 Hrs @ 25°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.040A | Bearing Type | Ball |
| Approvals | CE, CSA, TUV, UL, VDE | Air Flow | 20.0 CFM (0.560m³/min) |
