B23AW

NKK SwitchesNKK Switches

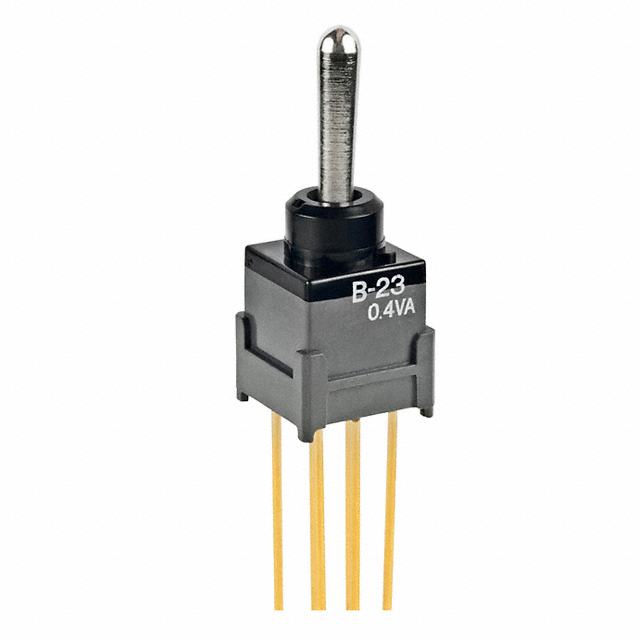

B23AW Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: B23AW
Manufacturer/Brand: NKK Switches
Product description SWITCH TOGGLE DPDT 0.4VA 28V
Datasheets: B23AW.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 22790 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 22790 pcs
Reference Price (In US Dollars)
1 pcs
$1.698
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$1.698

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of B23AW

Part Number B23AW Manufacturer NKK Switches
Description SWITCH TOGGLE DPDT 0.4VA 28V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 22790 pcs Data sheet B23AW.pdf
Voltage Rating - DC 28V Voltage Rating - AC 28V
Termination Style Wire Wrap Switch Function On-Off-On
Series B Panel Cutout Dimensions -
Packaging Bulk Operating Temperature -30°C ~ 85°C
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 10 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Ingress Protection - Illumination Voltage (Nominal) -
Illumination Type, Color - Illumination Non-Illuminated
Features Epoxy Sealed Terminals Electrical Life 50,000 Cycles
Detailed Description Toggle Switch DPDT Through Hole Current Rating 0.4VA (AC/DC)
Circuit DPDT Bushing Thread Unthreaded
Actuator Type Standard Round Actuator Material Brass, Nickel Plated
Actuator Length 10.00mm
