B23AV

NKK Switches

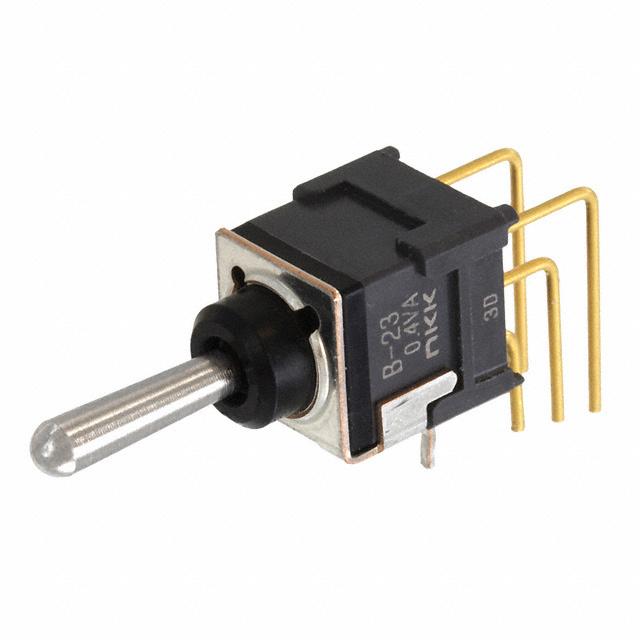

Image may be representation. See specifications for product details.

Product Overview

Part Number:	B23AV
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TOGGLE DPDT 0.4VA 28V
Datasheets:	B23AV.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18336 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 18336 pcs

Reference Price (In US Dollars)

1 pcs: $1.925

10 pcs: $1.833

25 pcs: $1.788

50 pcs: $1.742

100 pcs: $1.696

250 pcs: $1.558

500 pcs: $1.375

1000 pcs: $1.238

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.925

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of B23AV

Part Number	B23AV	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18336 pcs	Data sheet	B23AV.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	28V
Termination Style	PC Pin	Switch Function	On-Off-On
Series	B	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	360-3022 B23AV-ND
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole, Right Angle, Vertical
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Epoxy Sealed Terminals
Electrical Life	50,000 Cycles	Detailed Description	Toggle Switch DPDT Through Hole, Right Angle, Vertical
Current Rating	0.4VA (AC/DC)	Circuit	DPDT
Bushing Thread	Unthreaded	Actuator Type	Standard Round
Actuator Material	Brass, Nickel Plated	Actuator Length	10.00mm
