AS22AV

NKK Switches

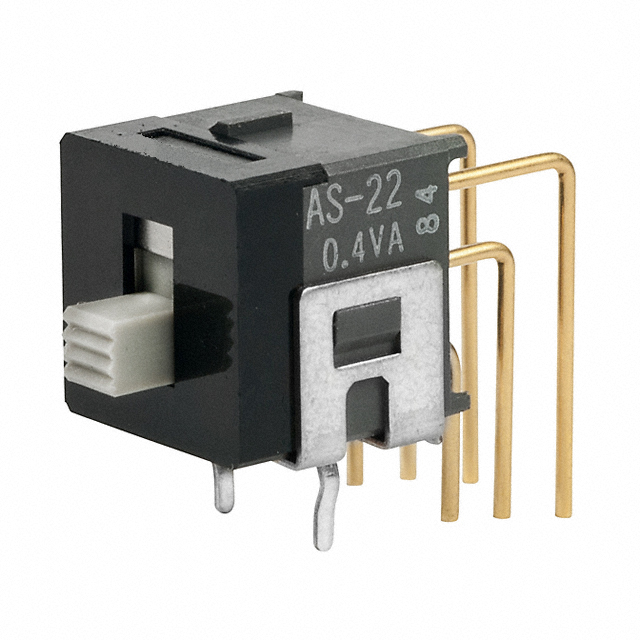

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AS22AV
Manufacturer/Brand:	NKK Switches
Product description	SWITCH SLIDE DPDT 0.4VA 28V
Datasheets:	AS22AV.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18677 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 18677 pcs

Reference Price (In US Dollars)

1 pcs: $2.027

10 pcs: $1.983

25 pcs: $1.895

50 pcs: $1.675

100 pcs: $1.653

250 pcs: $1.631

500 pcs: $1.344

1000 pcs: $1.256

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.027

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AS22AV

Part Number	AS22AV	Manufacturer	NKK Switches
Description	SWITCH SLIDE DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18677 pcs	Data sheet	AS22AV.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	28V
Termination Style	PC Pin	Switch Travel	2.50mm
Switch Function	On-On	Series	AS
Packaging	Tray	Other Names	360-3410 AS22AV-ND AS22AV-RO AS22AV-RO-ND
Operating Temperature	-30°C ~ 85°C	Operating Force	260gf
Mounting Type	Through Hole, Right Angle, Vertical	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Epoxy Sealed Terminals
Electrical Life	50,000 Cycles	Detailed Description	Slide Switch DPDT Through Hole, Right Angle, Vertical
Current Rating	0.4VA (AC/DC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Phosphor Bronze	Contact Finish	Gold
Circuit	DPDT	Actuator Type	Standard
Actuator Material	Polyamide (PA), Nylon, Glass Filled	Actuator Length	2.50mm
