NKK Switches

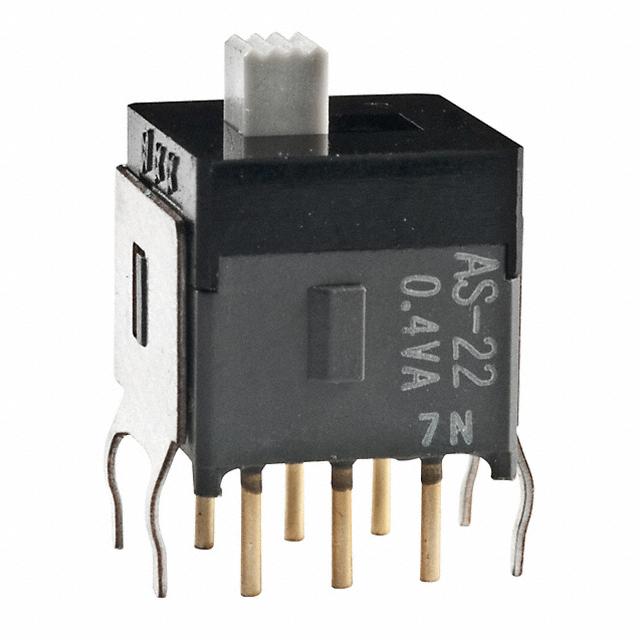

| Part Number | AS22AB | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH SLIDE DPDT 0.4VA 28V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15636 pcs | Data sheet | AS22AB.pdf |
| Voltage Rating - DC | 28V | Voltage Rating - AC | 28V |
| Termination Style | PC Pin | Switch Travel | 2.50mm |
| Switch Function | On-On | Series | AS |
| Packaging | Tray | Other Names | AS22AB-RO AS22AB-RO-ND |
| Operating Temperature | -30°C ~ 85°C | Operating Force | 260gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 50,000 Cycles | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Epoxy Sealed Terminals |
| Electrical Life | 50,000 Cycles | Detailed Description | Slide Switch DPDT Through Hole |
| Current Rating | 0.4VA (AC/DC) | Contact Timing | Non-Shorting (BBM) |
| Contact Material | Phosphor Bronze | Contact Finish | Gold |
| Circuit | DPDT | California Prop 65 | Warning Information WARNING: This product can expose you to chemicals including Antimony oxide (Antimony trioxide) and Nickel (Metallic) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov. |
| Actuator Type | Standard | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Length | 2.50mm |
