56T100C

Murata Power Solutions

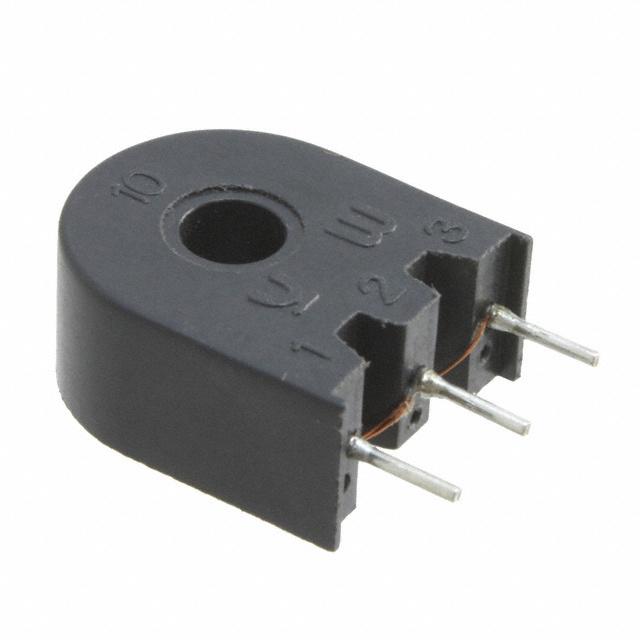

Image may be representation. See specifications for product details.

Product Overview

Part Number:	56T100C
Manufacturer/Brand:	Murata Power Solutions
Product description	CURR SENSE XFMR 10A T/H
Datasheets:	56T100C.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	53001 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 53001 pcs

Reference Price (In US Dollars)

1 pcs: $0.585

10 pcs: $0.578

25 pcs: $0.571

50 pcs: $0.553

100 pcs: $0.531

250 pcs: $0.495

500 pcs: $0.461

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.585

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 56T100C

Part Number	56T100C	Manufacturer	Murata Power Solutions
Description	CURR SENSE XFMR 10A T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	53001 pcs	Data sheet	56T100C.pdf
Weight	0.013 lb (5.9g)	Type	Non-Invasive (Solid Core)
Turns Ratio - Primary:Secondary	-	Termination Style	PC Pin
Size / Dimension	0.661" L x 0.350" W (16.79mm x 8.89mm)	Series	5600
Ratings	-	Packaging	Tube
Other Names	811-2642	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.795" (20.16mm)
Frequency Range	20kHz ~ 200kHz	Energy Time (E.T.)	-
Detailed Description	10A Current Sense Transformer 20kHz ~ 200kHz Through Hole	DC Resistance (DCR)	-
Current Ratio	100CT:1	Current Rating	10A
