CST-1030-B

Triad Magnetics

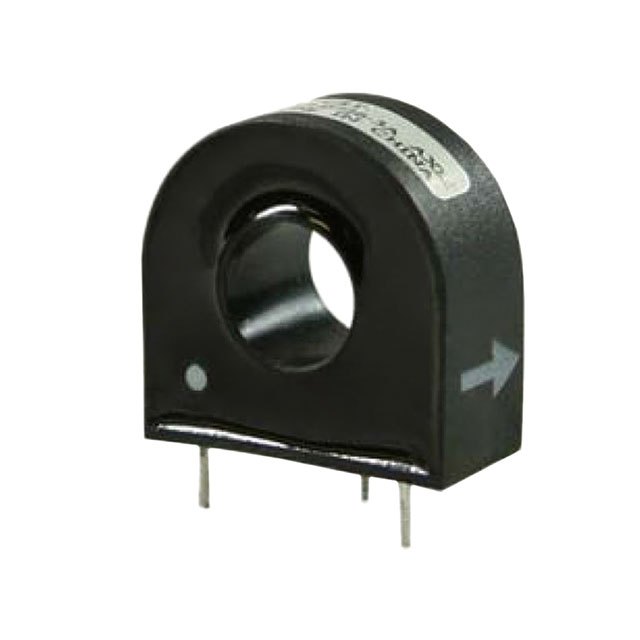

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CST-1030-B
Manufacturer/Brand:	Triad Magnetics
Product description	CURR SENSE XFMR 30A T/H
Datasheets:	CST-1030-B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16451 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 16451 pcs

Reference Price (In US Dollars)

70 pcs: $2.166

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.166

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CST-1030-B

Part Number	CST-1030-B	Manufacturer	Triad Magnetics
Description	CURR SENSE XFMR 30A T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16451 pcs	Data sheet	CST-1030-B.pdf
Weight	0.066 lb (29.94g)	Type	Non-Invasive (Solid Core)
Turns Ratio - Primary:Secondary	-	Termination Style	PC Pin
Size / Dimension	1.189" L x 0.563" W (30.20mm x 14.30mm)	Series	CST
Ratings	-	Packaging	Bulk
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	27 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	1.189" (30.20mm)	Frequency Range	50/60Hz
Energy Time (E.T.)	-	Detailed Description	30A Current Sense Transformer 50/60Hz 46 Ohm Through Hole
DC Resistance (DCR)	46 Ohm	Current Ratio	1000:1
Current Rating	30A
