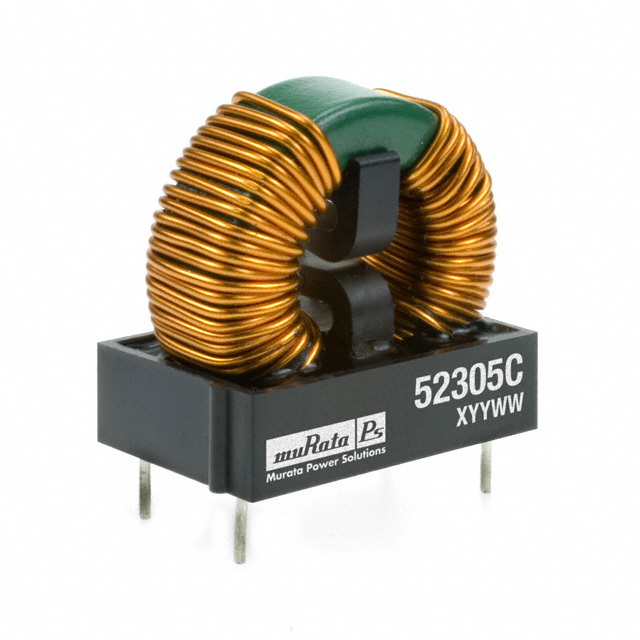

52305C

Murata Power Solutions

Image may be representation. See specifications for product details.

Product Overview

Part Number:	52305C
Manufacturer/Brand:	Murata Power Solutions
Product description	COMMON MODE CHOKE 3.5A 2LN TH
Datasheets:	52305C.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	26182 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 26182 pcs

Reference Price (In US Dollars)

1 pcs: $1.203

25 pcs: $1.167

50 pcs: $1.015

100 pcs: $0.972

250 pcs: $0.95

500 pcs: $0.946

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.203

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 52305C

Part Number	52305C	Manufacturer	Murata Power Solutions
Description	COMMON MODE CHOKE 3.5A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26182 pcs	Data sheet	52305C.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	0.945" L x 0.642" W (24.00mm x 16.30mm)	Series	5200
Ratings	-	Packaging	Tray
Package / Case	Vertical, 4 PC Pin	Other Names	811-1258
Operating Temperature	-40°C ~ 125°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height (Max)	1.220" (31.00mm)	Filter Type	Power Line
Features	-	Detailed Description	2 Line Common Mode Choke Through Hole 3.5A DCR 45 mOhm
DC Resistance (DCR) (Max)	45 mOhm	Current Rating (Max)	3.5A
Approvals	-
