Aavid Thermalloy

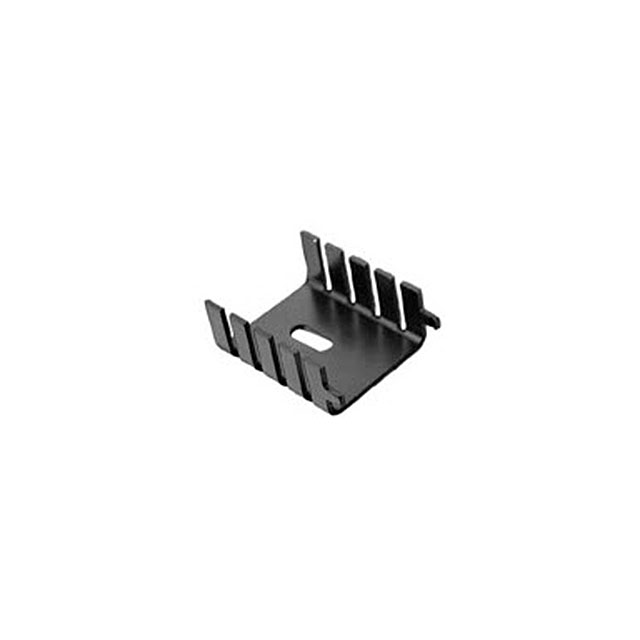

| Part Number | 523002B00000G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-220 W/TAB BLACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 146034 pcs | Data sheet | 1.523002B00000G.pdf2.523002B00000G.pdf |
| Width | 1.000" (25.40mm) | Type | Board Level, Vertical |
| Thermal Resistance @ Natural | 13.60°C/W | Thermal Resistance @ Forced Air Flow | 6.00°C/W @ 300 LFM |
| Shape | Rectangular, Fins | Series | - |
| Power Dissipation @ Temperature Rise | 1.0W @ 20°C | Package Cooled | TO-220 |
| Other Names | 001548 523002B00000 6230B |
Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Finish | Black Anodized | Material | Aluminum |
| Manufacturer Standard Lead Time | 7 Weeks | Length | 1.180" (29.97mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Off Base (Height of Fin) | 0.500" (12.70mm) |
| Diameter | - | Detailed Description | Heat Sink TO-220 Aluminum 1.0W @ 20°C Board Level, Vertical |
| Attachment Method | Bolt On and PC Pin |
