JANTX2N2323

Microsemi

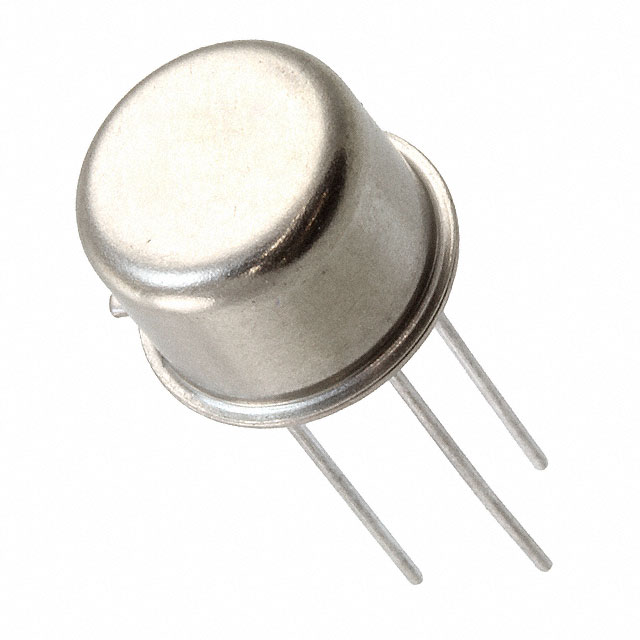

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JANTX2N2323
Manufacturer/Brand:	Microsemi
Product description	DIODE SILICON CTRL TO-5
Datasheets:	JANTX2N2323.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	5917 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5917 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JANTX2N2323

Part Number	JANTX2N2323	Manufacturer	Microsemi
Description	DIODE SILICON CTRL TO-5	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	5917 pcs	Data sheet	JANTX2N2323.pdf
Voltage - Off State	50V	Voltage - Gate Trigger (Vgt) (Max)	800mV
Supplier Device Package	TO-5-3	Series	Military, MIL-PRF-19500/276
SCR Type	Sensitive Gate	Packaging	Bulk
Package / Case	TO-205AA, TO-5-3 Metal Can	Other Names	1086-15490 1086-15490-MIL
Operating Temperature	-65°C ~ 125°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Detailed Description	SCR 50V Sensitive Gate Through Hole TO-5-3	Current - On State (It (AV)) (Max)	220mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	-	Current - Hold (Ih) (Max)	2mA
Current - Gate Trigger (Igt) (Max)	200µA
