JANTX2N2222AL

Microsemi

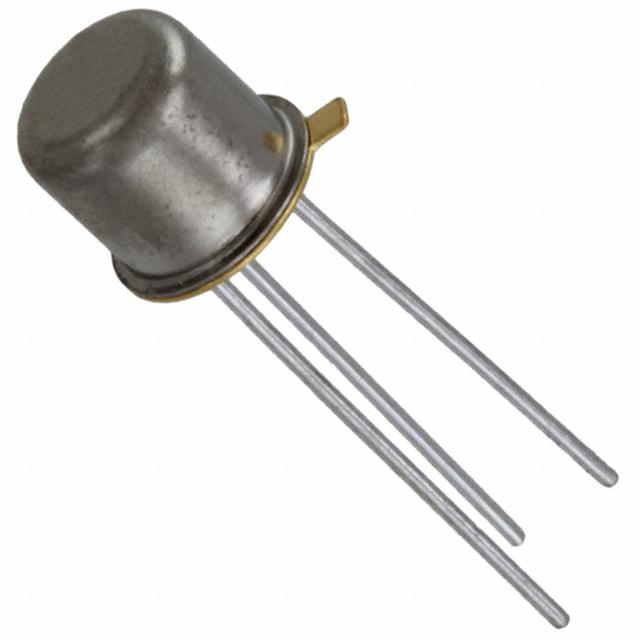

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JANTX2N2222AL
Manufacturer/Brand:	Microsemi
Product description	TRANS NPN 50V 0.8A TO18
Datasheets:	JANTX2N2222AL.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	4773 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4773 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JANTX2N2222AL

Part Number	JANTX2N2222AL	Manufacturer	Microsemi
Description	TRANS NPN 50V 0.8A TO18	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	4773 pcs	Data sheet	JANTX2N2222AL.pdf
Voltage - Collector Emitter Breakdown (Max)	50V	Vce Saturation (Max) @ Ib, Ic	1V @ 50mA, 500mA
Transistor Type	NPN	Supplier Device Package	TO-218
Series	Military, MIL-PRF-19500/255	Power - Max	500mW
Packaging	Bulk	Package / Case	TO-206AA, TO-18-3 Metal Can
Other Names	1086-2676 1086-2676-MIL	Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Frequency - Transition	-
Detailed Description	Bipolar (BJT) Transistor NPN 50V 800mA 500mW Through Hole TO-218	DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 10V
Current - Collector Cutoff (Max)	50nA	Current - Collector (Ic) (Max)	800mA
