APTM20AM04FG

Microsemi

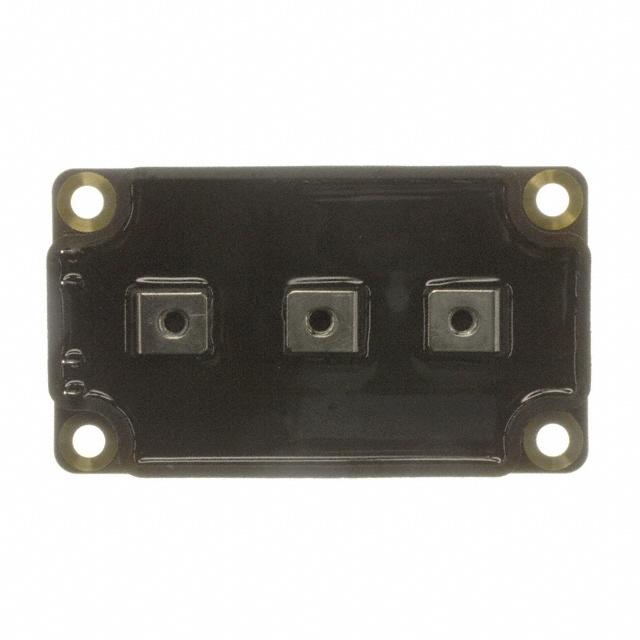

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APTM20AM04FG
Manufacturer/Brand:	Microsemi
Product description	MOSFET 2N-CH 200V 372A SP6
Datasheets:	1.APTM20AM04FG.pdf 2.APTM20AM04FG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	385 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 385 pcs

Reference Price (In US Dollars)

1 pcs: $79.162

10 pcs: $75.342

25 pcs: $72.612

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$79.162

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APTM20AM04FG

Part Number	APTM20AM04FG	Manufacturer	Microsemi
Description	MOSFET 2N-CH 200V 372A SP6	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	385 pcs	Data sheet	1.APTM20AM04FG.pdf 2.APTM20AM04FG.pdf
Vgs(th) (Max) @ Id	5V @ 10mA	Supplier Device Package	SP6
Series	-	Rds On (Max) @ Id, Vgs	5 mOhm @ 186A, 10V
Power - Max	1250W	Packaging	Bulk
Package / Case	SP6	Other Names	APTM20AM04FGMI APTM20AM04FGMI-ND
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	32 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	28900pF @ 25V
Gate Charge (Qg) (Max) @ Vgs	560nC @ 10V	FET Type	2 N-Channel (Half Bridge)
FET Feature	Standard	Drain to Source Voltage (Vdss)	200V
Detailed Description	Mosfet Array 2 N-Channel (Half Bridge) 200V 372A 1250W Chassis Mount SP6	Current - Continuous Drain (Id) @ 25°C	372A
