APTM120U10SAG

Microsemi

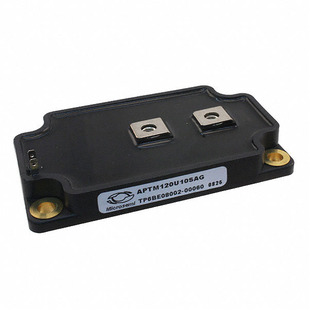

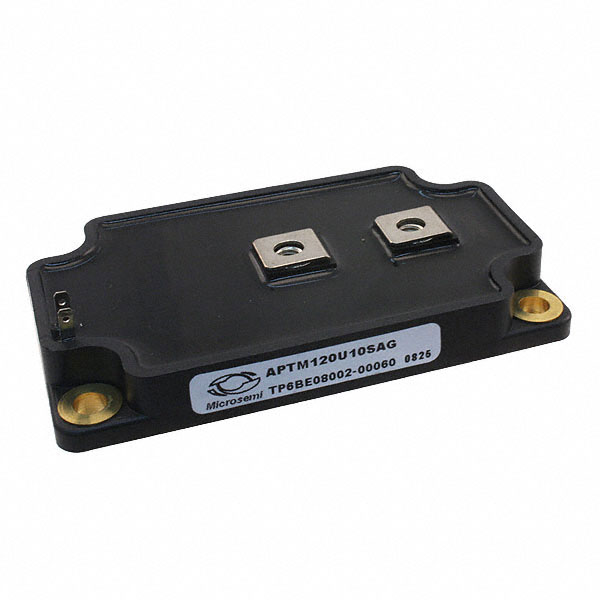

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APTM120U10SAG
Manufacturer/Brand:	Microsemi
Product description	MOSFET N-CH 1200V 116A SP6
Datasheets:	1.APTM120U10SAG.pdf 2.APTM120U10SAG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	570 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 570 pcs

Reference Price (In US Dollars)

100 pcs: $68.421

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$68.421

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APTM120U10SAG

Part Number	APTM120U10SAG	Manufacturer	Microsemi
Description	MOSFET N-CH 1200V 116A SP6	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	570 pcs	Data sheet	1.APTM120U10SAG.pdf 2.APTM120U10SAG.pdf
Vgs(th) (Max) @ Id	5V @ 20mA	Vgs (Max)	±30V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	SP6
Series	-	Rds On (Max) @ Id, Vgs	120 mOhm @ 58A, 10V
Power Dissipation (Max)	3290W (Tc)	Packaging	Bulk
Package / Case	SP6	Other Names	APTM120U10SAGMI APTM120U10SAGMI-ND
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	32 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	28900pF @ 25V
Gate Charge (Qg) (Max) @ Vgs	1100nC @ 10V	FET Type	N-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	10V
Drain to Source Voltage (Vdss)	1200V	Detailed Description	N-Channel 1200V 116A (Tc) 3290W (Tc) Chassis Mount SP6
Current - Continuous Drain (Id) @ 25°C	116A (Tc)
