2N3700

Microsemi

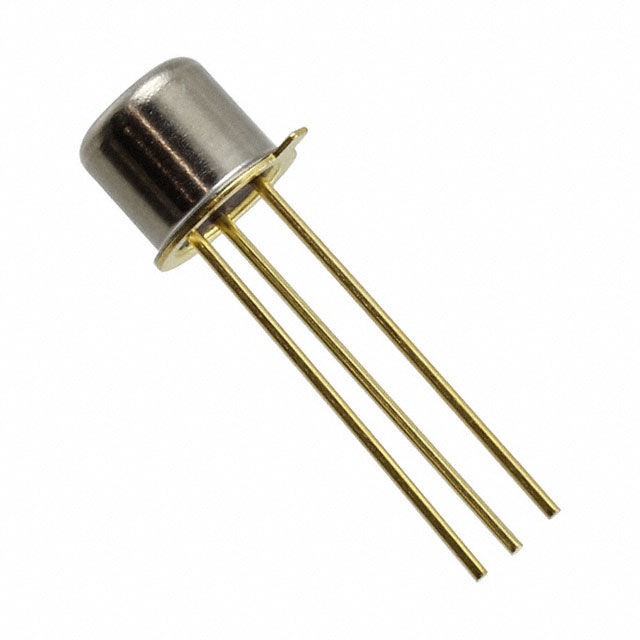

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2N3700
Manufacturer/Brand:	Microsemi
Product description	TRANS NPN 80V 1A TO18
Datasheets:	2N3700.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	14191 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 14191 pcs

Reference Price (In US Dollars)

1 pcs: $2.467

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.467

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2N3700

Part Number	2N3700	Manufacturer	Microsemi
Description	TRANS NPN 80V 1A TO18	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	14191 pcs	Data sheet	2N3700.pdf
Voltage - Collector Emitter Breakdown (Max)	80V	Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA
Transistor Type	NPN	Supplier Device Package	TO-18
Series	-	Power - Max	500mW
Packaging	Bulk	Package / Case	TO-206AA, TO-18-3 Metal Can
Other Names	2N3700MS	Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Frequency - Transition	-
Detailed Description	Bipolar (BJT) Transistor NPN 80V 1A 500mW Through Hole TO-18	DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 500mA, 10V
Current - Collector Cutoff (Max)	10nA	Current - Collector (Ic) (Max)	1A
