LAH 25-NP

LEM USA, Inc.

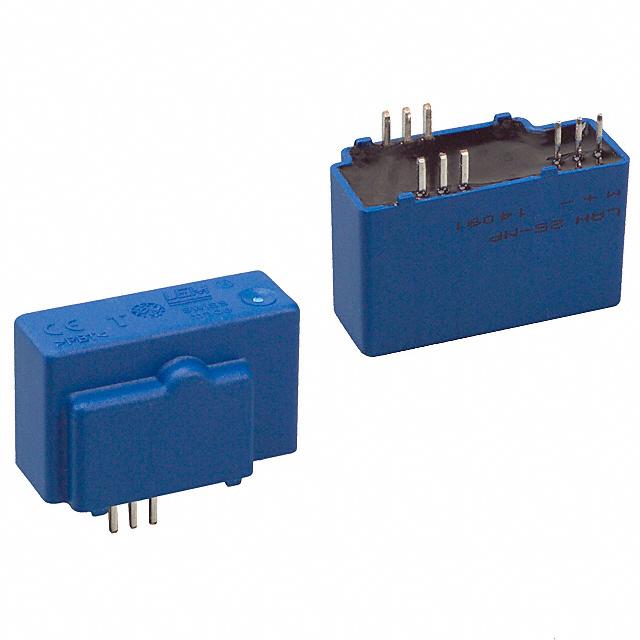

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LAH 25-NP
Manufacturer/Brand:	LEM USA, Inc.
Product description	SENSOR CURRENT HALL 8A, 12A, 25A
Datasheets:	LAH 25-NP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3548 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 3548 pcs

Reference Price (In US Dollars)

1 pcs: $8.265

5 pcs: $7.889

10 pcs: $7.138

25 pcs: $6.575

50 pcs: $5.823

100 pcs: $5.635

500 pcs: $5.26

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$8.265

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LAH 25-NP

Part Number	LAH 25-NP	Manufacturer	LEM USA, Inc.
Description	SENSOR CURRENT HALL 8A, 12A, 25A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3548 pcs	Data sheet	LAH 25-NP.pdf
Voltage - Supply	±12 V ~ 15 V	Series	LAH
Sensor Type	Hall Effect, Closed Loop	Sensitivity	-
Response Time	0.5µs	Polarization	Bidirectional
Packaging	Bulk	Package / Case	-
Output	Ratiometric, Current	Other Names	398-1007 90.34.19.000.0 LAH25NP
Operating Temperature	-25°C ~ 85°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Linearity	±0.2%
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency	DC ~ 200kHz
For Measuring	AC/DC	Detailed Description	Current Sensor 8A, 12A, 25A (Selectable) 1 Channel Hall Effect, Closed Loop Bidirectional
Current - Supply (Max)	35mA	Current - Sensing	8A, 12A, 25A (Selectable)
Accuracy	±0.3%
