CKSR 25-NP

LEM USA, Inc.

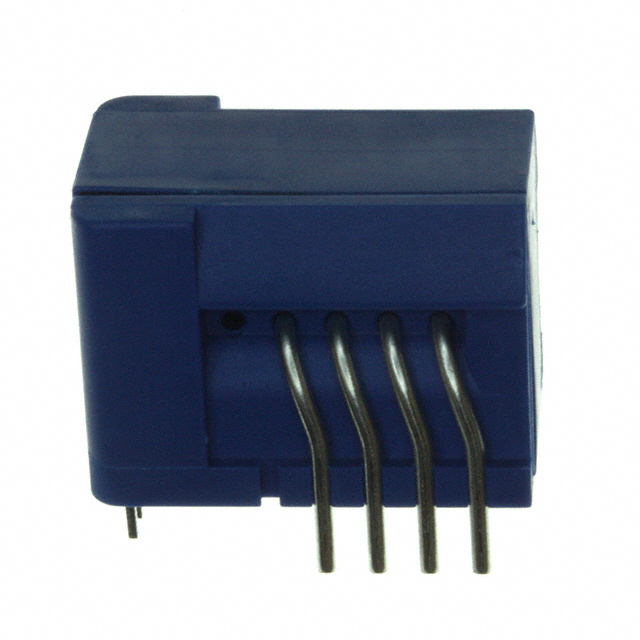

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CKSR 25-NP
Manufacturer/Brand:	LEM USA, Inc.
Product description	SENSOR CURRENT FLUX 25A AC/DC
Datasheets:	CKSR 25-NP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4691 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4691 pcs

Reference Price (In US Dollars)

1 pcs: $6.506

5 pcs: $6.372

10 pcs: $5.31

25 pcs: $4.912

50 pcs: $4.779

100 pcs: $4.115

500 pcs: $3.85

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$6.506

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CKSR 25-NP

Part Number	CKSR 25-NP	Manufacturer	LEM USA, Inc.
Description	SENSOR CURRENT FLUX 25A AC/DC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4691 pcs	Data sheet	CKSR 25-NP.pdf
Voltage - Supply	4.75 V ~ 5.25 V	Series	CKSR
Sensor Type	Flux Gate, Closed Loop	Sensitivity	25mV/A
Response Time	0.3µs	Polarization	Bidirectional
Packaging	Tube	Package / Case	Module
Output	Ratiometric, Voltage	Other Names	398-1097 398-1097-5 398-1097-5-ND 90.E7.19.000.7 CKSR25NP
Operating Temperature	-40°C ~ 105°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Linearity	±1%
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency	300kHz
For Measuring	AC/DC	Detailed Description	Current Sensor 25A 1 Channel Flux Gate, Closed Loop Bidirectional Module
Current - Supply (Max)	20mA	Current - Sensing	25A
Accuracy	±0.8%
