HXS 20-NP

LEM USA, Inc.

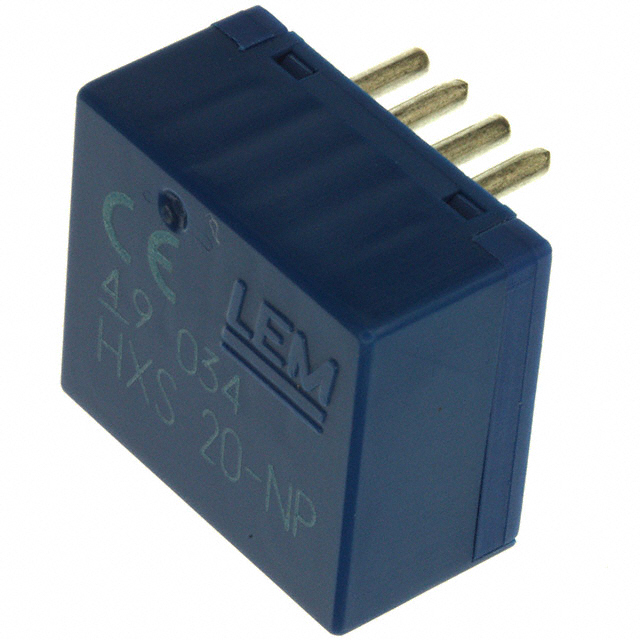

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HXS 20-NP
Manufacturer/Brand:	LEM USA, Inc.
Product description	SENSOR CURRENT HALL 5A, 10A, 20A
Datasheets:	HXS 20-NP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6183 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 6183 pcs

Reference Price (In US Dollars)

1 pcs: $5.932

5 pcs: $5.809

20 pcs: $4.841

40 pcs: $4.478

60 pcs: $4.357

100 pcs: $3.751

500 pcs: $3.509

1000 pcs: $3.328

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$5.932

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HXS 20-NP

Part Number	HXS 20-NP	Manufacturer	LEM USA, Inc.
Description	SENSOR CURRENT HALL 5A, 10A, 20A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6183 pcs	Data sheet	HXS 20-NP.pdf
Voltage - Supply	5V	Series	HXS
Sensor Type	Hall Effect, Open Loop	Sensitivity	-
Response Time	5µs	Polarization	Bidirectional
Packaging	Tube	Package / Case	Module
Output	Ratiometric, Voltage	Other Names	398-1025-5 64.90.17.000.0 HXS20NP
Operating Temperature	-40°C ~ 105°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Linearity	±0.5%
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency	DC ~ 50kHz
For Measuring	AC/DC	Detailed Description	Current Sensor 5A, 10A, 20A (Selectable) 1 Channel Hall Effect, Open Loop Bidirectional Module
Current - Supply (Max)	19mA	Current - Sensing	5A, 10A, 20A (Selectable)
Accuracy	±1%
