BM2P032

LAPIS Semiconductor

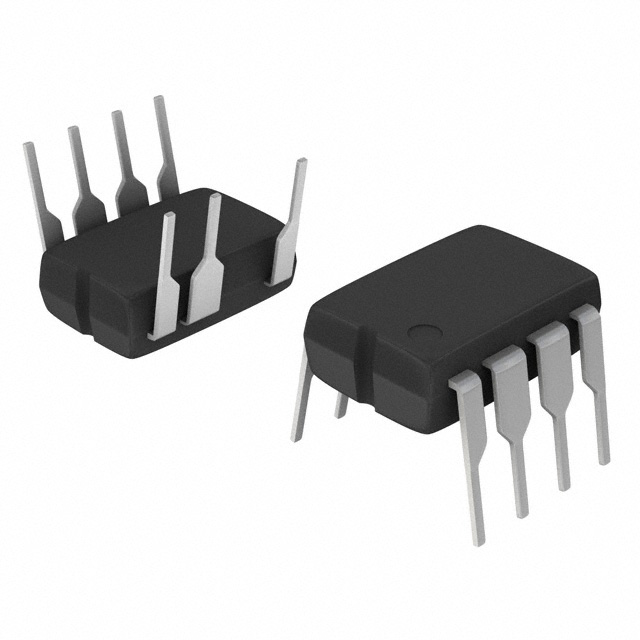

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BM2P032
Manufacturer/Brand:	LAPIS Semiconductor
Product description	IC CONV DC/DC PWM 0.775MA 7DIP
Datasheets:	1.BM2P032.pdf 2.BM2P032.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	52370 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 52370 pcs

Reference Price (In US Dollars)

1 pcs: $0.676

10 pcs: $0.609

25 pcs: $0.544

100 pcs: $0.489

250 pcs: $0.435

500 pcs: $0.381

1000 pcs: $0.315

2500 pcs: $0.304

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.676

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BM2P032

Part Number	BM2P032	Manufacturer	LAPIS Semiconductor
Description	IC CONV DC/DC PWM 0.775MA 7DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	52370 pcs	Data sheet	1.BM2P032.pdf 2.BM2P032.pdf
Voltage - Supply (Vcc/Vdd)	8.9 V ~ 26 V	Voltage - Start Up	13.5V
Voltage - Breakdown	650V	Topology	Flyback
Supplier Device Package	7-DIP	Series	-
Packaging	Tube	Package / Case	8-DIP (0.300", 7.62mm), 7 Leads
Output Isolation	Either	Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Internal Switch(s)	Yes
Frequency - Switching	65kHz	Fault Protection	Current Limiting, Over Voltage, Short Circuit
Duty Cycle	75%	Detailed Description	Converter Offline Flyback Topology 65kHz 7-DIP
Control Features	-
