LAPIS Semiconductor
| Part Number | BA5969FP-E2 | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | IC BRIDGE DRIVER PAR 28HSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 41212 pcs | Data sheet | BA5969FP-E2.pdf |
| Voltage - Supply | 4.3 V ~ 9 V | Voltage - Load | 6V |

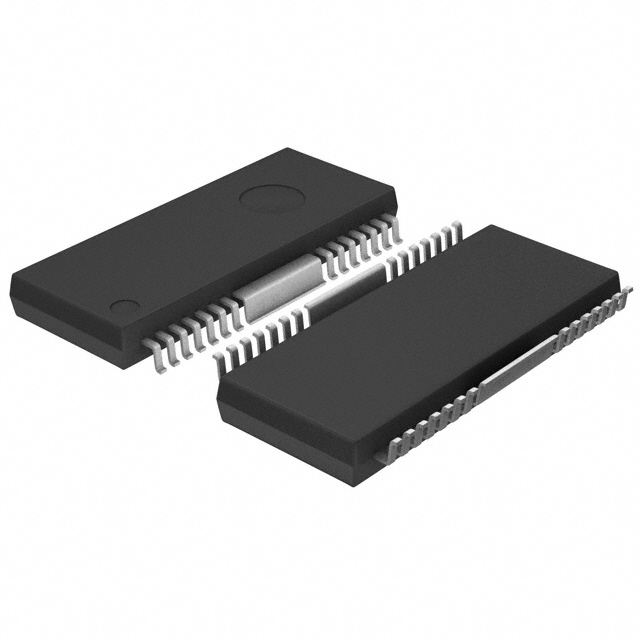

| Technology | Bipolar | Supplier Device Package | 28-HSOP |
| Series | - | Rds On (Typ) | - |
| Packaging | Tape & Reel (TR) | Package / Case | 28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs |
| Output Configuration | Half Bridge (8) | Other Names | BA5969FP-E2-ND BA5969FP-E2TR BA5969FPE2 |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Load Type | Inductive | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | Logic | Features | - |
| Fault Protection | Over Temperature | Detailed Description | Half Bridge (8) Driver DC Motors, General Purpose Bipolar 28-HSOP |
| Current - Peak Output | - | Current - Output / Channel | - |
| Base Part Number | BA5969 | Applications | DC Motors, General Purpose |
