BA5956FM-E2

LAPIS Semiconductor

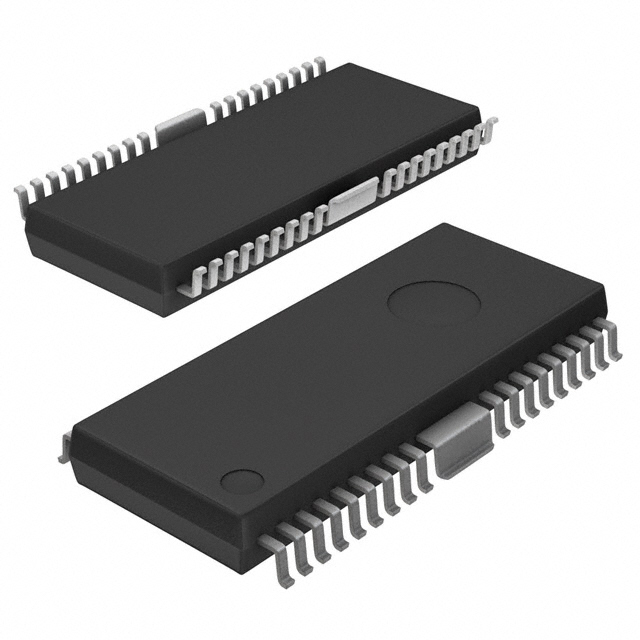

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BA5956FM-E2
Manufacturer/Brand:	LAPIS Semiconductor
Product description	IC MOTOR DRIVER PAR 36-HSOP
Datasheets:	BA5956FM-E2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34618 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 34618 pcs

Reference Price (In US Dollars)

1500 pcs: $0.961

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.961

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BA5956FM-E2

Part Number	BA5956FM-E2	Manufacturer	LAPIS Semiconductor
Description	IC MOTOR DRIVER PAR 36-HSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34618 pcs	Data sheet	BA5956FM-E2.pdf
Voltage - Supply	4.5 V ~ 14 V	Voltage - Load	-
Technology	Bipolar	Supplier Device Package	36-HSOP-M
Series	-	Rds On (Typ)	-
Packaging	Tape & Reel (TR)	Package / Case	36-SOP (0.295", 7.50mm Width) + 2 Heat Tabs
Output Configuration	Half Bridge (10)	Other Names	BA5956FME2
Operating Temperature	-35°C ~ 85°C (TA)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Load Type	Inductive	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Logic	Features	-
Fault Protection	Over Temperature, UVLO	Detailed Description	Half Bridge (10) Driver DC Motors, General Purpose Bipolar 36-HSOP-M
Current - Peak Output	-	Current - Output / Channel	-
Base Part Number	BA5956	Applications	DC Motors, General Purpose
