Knowles

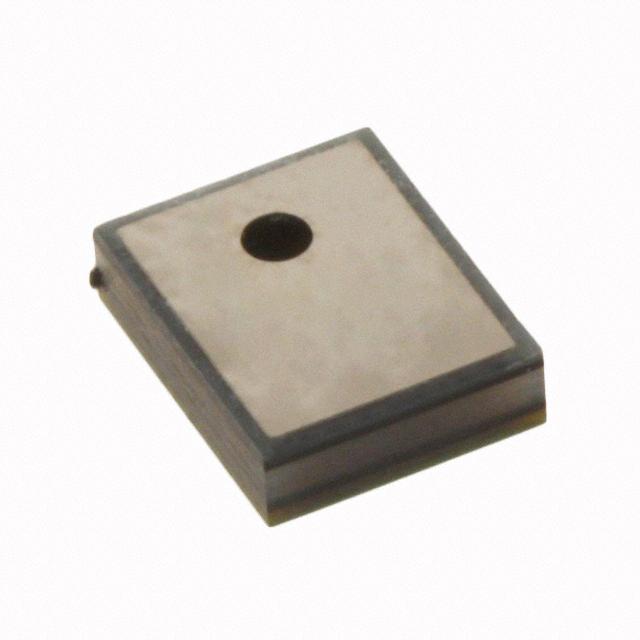

| Part Number | SPM0423HD4H-WB | Manufacturer | Knowles |
|---|---|---|---|
| Description | MIC MEMS DIGITAL PDM OMNI -26DB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73502 pcs | Data sheet | SPM0423HD4H-WB.pdf |
| Voltage Range | 1.6V ~ 3.6V | Type | MEMS (Silicon) |
| Termination | Solder Pads | Size / Dimension | 0.186" L x 0.148" W (4.72mm x 3.76mm) |
| Shape | Rectangular | Series | SiSonic™ |
| Sensitivity | -26dB ±3dB @ 94dB SPL | S/N Ratio | 56dB |
| Port Location | Top | Packaging | Cut Tape (CT) |
| Output Type | Digital, PDM | Other Names | 423-1126-1 SPM0405HD4H-2CT SPM0405HD4H-2CT-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 0.053" (1.35mm) | Frequency Range | 100Hz ~ 10kHz |
| Direction | Omnidirectional | Detailed Description | 100Hz ~ 10kHz Digital, PDM Microphone MEMS (Silicon) 1.6V ~ 3.6V Omnidirectional (-26dB ±3dB @ 94dB SPL) Solder Pads |
| Current - Supply | 600µA |
