Knowles

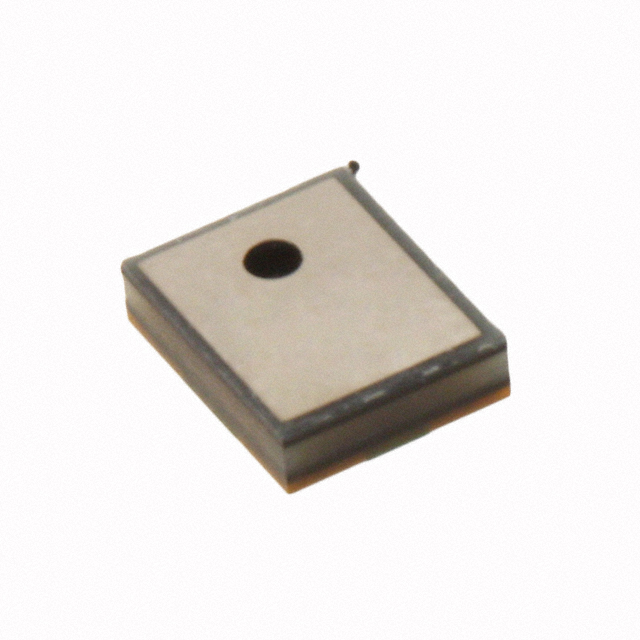

| Part Number | SPM0408HD5H-SB | Manufacturer | Knowles |
|---|---|---|---|
| Description | MIC MEMS ANALOG OMNI -22DB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4219 pcs | Data sheet | SPM0408HD5H-SB.pdf |
| Voltage Range | 1.5V ~ 3.6V | Type | MEMS (Silicon) |
| Termination | Solder Pads | Size / Dimension | 0.186" L x 0.148" W (4.72mm x 3.76mm) |
| Shape | Rectangular | Series | SiSonic™ |
| Sensitivity | -22dB ±3dB @ 94dB SPL | S/N Ratio | 59dB |
| Port Location | Top | Packaging | Tape & Reel (TR) |
| Output Type | Analog | Other Names | 423-1084-2 SPM0208HD5-2 SPM0408HD5H-SB-2 SPM0408HD5HSB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Impedance | 300 Ohms | Height (Max) | 0.053" (1.35mm) |
| Frequency Range | 100Hz ~ 10kHz | Direction | Omnidirectional |
| Detailed Description | 100Hz ~ 10kHz Analog Microphone MEMS (Silicon) 1.5V ~ 3.6V Omnidirectional (-22dB ±3dB @ 94dB SPL) Solder Pads | Current - Supply | 350µA |
