NJM3771D2

JRC Corporation / NJRC

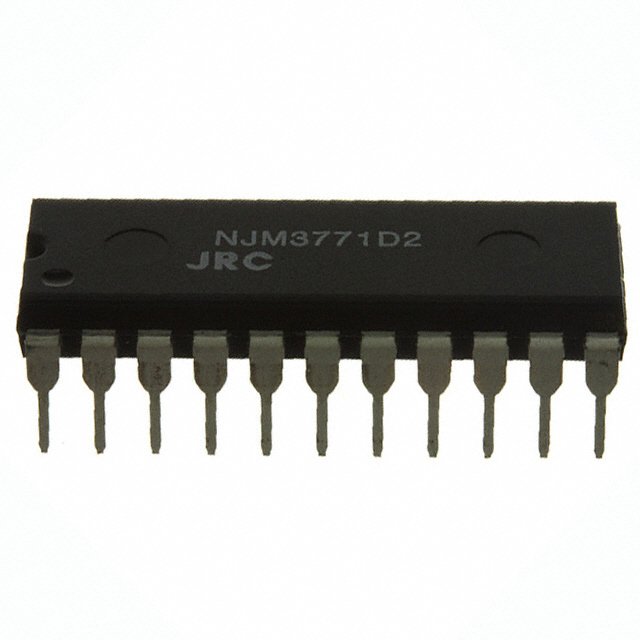

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NJM3771D2
Manufacturer/Brand:	JRC Corporation / NJRC
Product description	IC MOTOR DRIVER PAR 22DIP
Datasheets:	NJM3771D2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12459 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 12459 pcs

Reference Price (In US Dollars)

1 pcs: $2.402

20 pcs: $2.146

40 pcs: $1.931

100 pcs: $1.76

260 pcs: $1.588

500 pcs: $1.425

1000 pcs: $1.202

2500 pcs: $1.142

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.402

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NJM3771D2

Part Number	NJM3771D2	Manufacturer	JRC Corporation / NJRC
Description	IC MOTOR DRIVER PAR 22DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12459 pcs	Data sheet	NJM3771D2.pdf
Voltage - Supply	4.75 V ~ 5.25 V	Voltage - Load	10 V ~ 40 V
Technology	Bipolar	Supplier Device Package	-
Step Resolution	1, 1/2	Series	-
Packaging	Tube	Package / Case	22-DIP (0.400", 10.16mm)
Output Configuration	Half Bridge (4)	Other Names	NJM#3771D2 NJM#3771D2-ND NJM3771D2# NJM3771D2#-ND
Operating Temperature	-20°C ~ 125°C (TJ)	Mounting Type	Through Hole
Motor Type - Stepper	Bipolar	Motor Type - AC, DC	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	Parallel
Function	Driver - Fully Integrated, Control and Power Stage	Detailed Description	Bipolar Motor Driver Bipolar Parallel
Current - Output	650mA	Applications	General Purpose
