MX34020NF1

JAE Electronics, Inc.

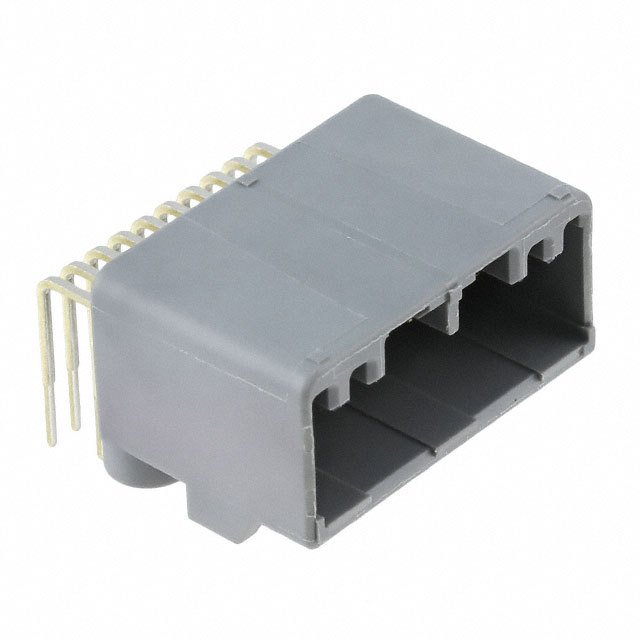

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MX34020NF1
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN HEADER PIN 20POS R/A TIN
Datasheets:	1.MX34020NF1.pdf 2.MX34020NF1.pdf 3.MX34020NF1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	61913 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 61913 pcs

Reference Price (In US Dollars)

1 pcs: $0.567

10 pcs: $0.513

100 pcs: $0.44

500 pcs: $0.367

1152 pcs: $0.314

5760 pcs: $0.279

10368 pcs: $0.272

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.567

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MX34020NF1

Part Number	MX34020NF1	Manufacturer	JAE Electronics, Inc.
Description	CONN HEADER PIN 20POS R/A TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	61913 pcs	Data sheet	1.MX34020NF1.pdf 2.MX34020NF1.pdf 3.MX34020NF1.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MX34	Row Spacing - Mating	0.118" (3.00mm)
Pitch - Mating	0.087" (2.20mm)	Packaging	Tube
Overall Contact Length	-	Other Names	670-2924 CBM-132383 MX34020NF1-ND
Operating Temperature	-40°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Syndiotactic Polystyrene (SPS), Glass Filled	Insulation Height	0.626" (15.90mm)
Insulation Color	Gray	Ingress Protection	-
Features	Mounting Flange	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 20 position 0.087" (2.20mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	0.303" (7.70mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
