JAE Electronics, Inc.

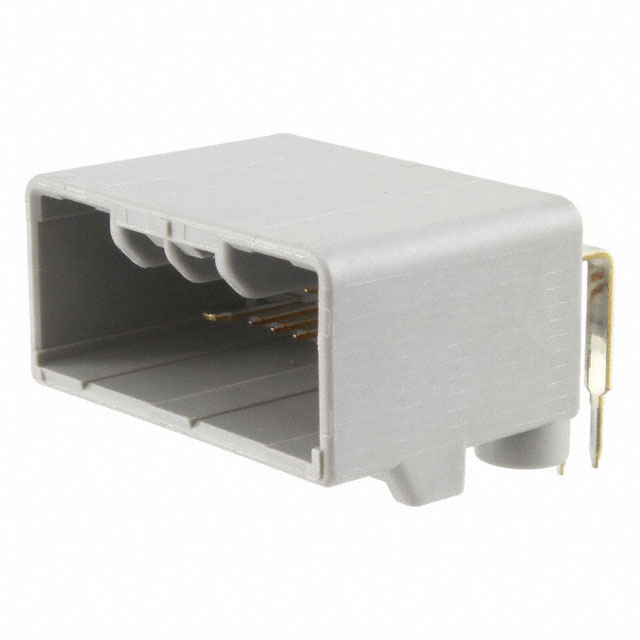

| Part Number | MX34017NFA | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN HEADER 17POS R/A 2.2MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39073 pcs | Data sheet | 1.MX34017NFA.pdf2.MX34017NFA.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | MX34 | Row Spacing - Mating | - |
| Pitch - Mating | - | Packaging | Tube |
| Overall Contact Length | - | Other Names | 670-2293 |
| Operating Temperature | -40°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 17 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled | Insulation Height | 0.650" (16.50mm) |
| Insulation Color | Gray | Ingress Protection | - |
| Features | Mounting Flange | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole, Right Angle 17 position | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.126" (3.20mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | Automotive |
