JAE Electronics, Inc.

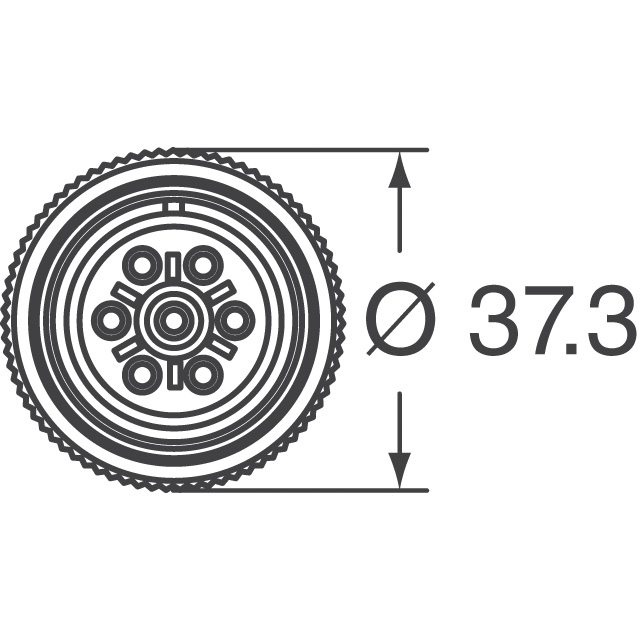

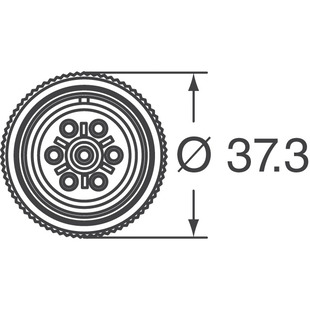

| Part Number | JL04V-8A20-15SE-EB-R | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN PLUG FMALE 7POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3835 pcs | Data sheet | 1.JL04V-8A20-15SE-EB-R.pdf2.JL04V-8A20-15SE-EB-R.pdf |
| Voltage Rating | - | Termination | Solder Cup |
| Shielding | - | Shell Size, MIL | - |
| Shell Size - Insert | 20-15 | Shell Material | Aluminum Alloy |
| Shell Finish | Zinc | Series | JL04V |
| Packaging | Bulk | Other Names | 670-2112 JL04V8A2015SEEBR |
| Orientation | N (Normal) | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 7 (6 + PE) | Mounting Type | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Resin | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Backshell, Coupling Nut, Ground Lug | Fastening Type | Threaded |
| Detailed Description | 7 (6 + PE) Position Circular Connector Plug, Female Sockets Solder Cup Silver | Current Rating | 23A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Plug, Female Sockets |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | Aluminum Alloy, Zinc | Applications | Industrial, Medical, Telecommunications, Test Equipment & Measurement |
