JAE Electronics, Inc.
| Part Number | JB5DS03ML11N | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|

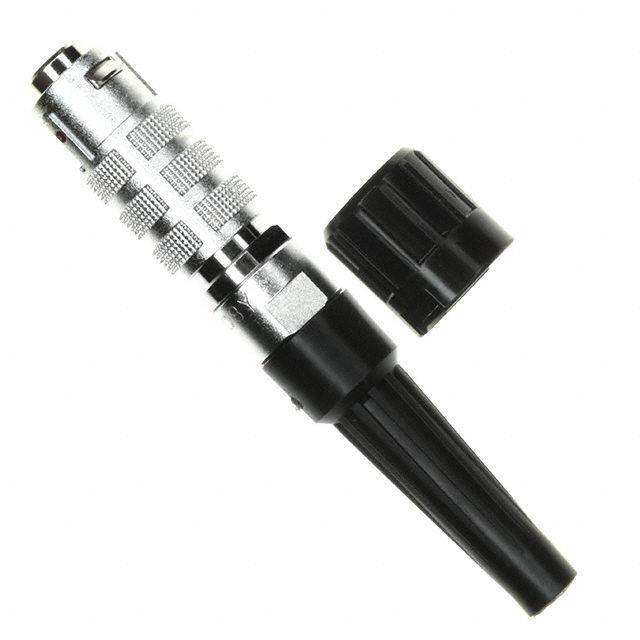

| Description | CONN PLUG MALE 3POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2708 pcs | Data sheet | 1.JB5DS03ML11N.pdf2.JB5DS03ML11N.pdf3.JB5DS03ML11N.pdf |
| Voltage Rating | 320VAC | Termination | Solder Cup |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | S | Shell Material | Zinc Alloy |
| Shell Finish | Nickel | Series | JB5 |
| Packaging | Tray | Other Names | 670-1038 JB5DS03ML11 |
| Orientation | N (Normal) | Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 3 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Synthetic Resin |
| Ingress Protection | IP68 - Dust Tight, Waterproof | Features | Clamp, Strain Relief |
| Fastening Type | Push-Pull | Detailed Description | 3 Position Circular Connector Plug, Male Pins Solder Cup Gold |
| Current Rating | 3A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Mating | Gold |
| Connector Type | Plug, Male Pins | Color | Black, Silver |
| Cable Opening | 0.177" ~ 0.197" (4.50mm ~ 5.00mm) | Backshell Material, Plating | - |
| Applications | Medical, Telecommunications, Test & Measurement |
