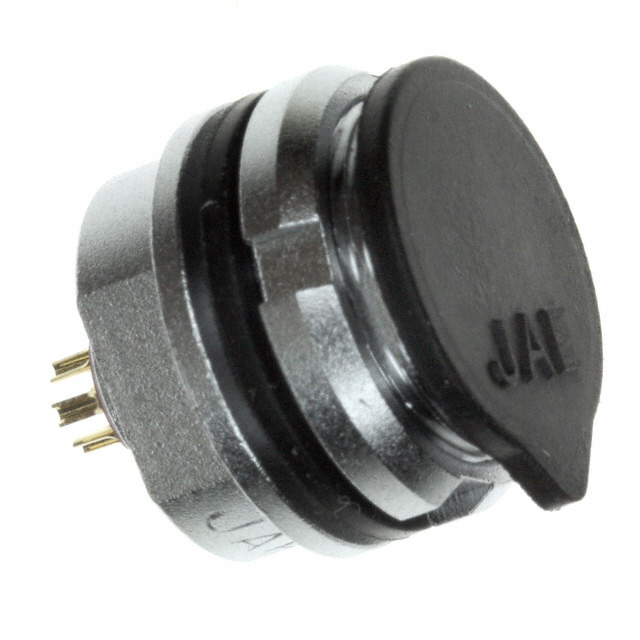

JAE Electronics, Inc.
| Part Number | JB5CS06FN00N | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT FMALE 6POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4027 pcs | Data sheet | 1.JB5CS06FN00N.pdf2.JB5CS06FN00N.pdf3.JB5CS06FN00N.pdf |
| Voltage Rating | 200VAC | Termination | Solder Cup |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | S | Shell Material | Copper Alloy |
| Shell Finish | Chromium | Series | JB5 |
| Packaging | Tray | Other Names | 670-1035 JB5CS06FN00 |
| Orientation | N (Normal) | Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 6 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Resin | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Features | Dust Cap | Fastening Type | Push-Pull |
| Detailed Description | 6 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold | Current Rating | 2A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
| Color | Silver | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Medical, Telecommunications, Test & Measurement |
