IRSM836-084MATR

International Rectifier (Infineon Technologies)

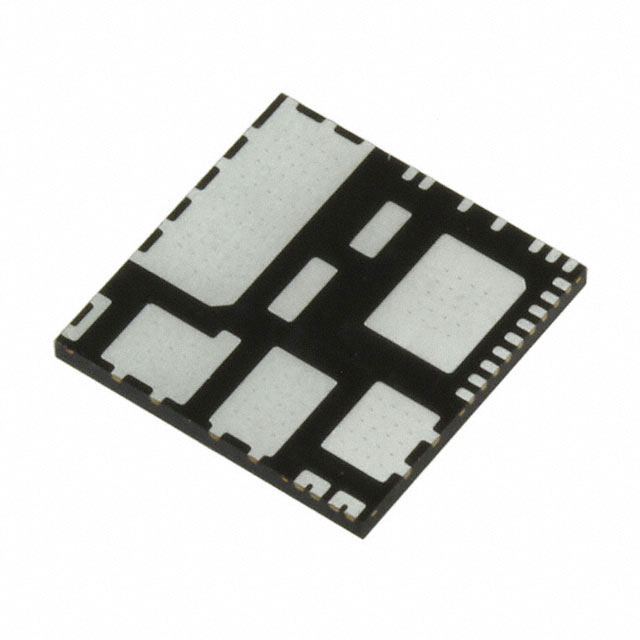

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IRSM836-084MATR
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	IC HALF-BRIDGE DRVR 3CH 36PQFN
Datasheets:	IRSM836-084MATR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23607 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 23607 pcs

Reference Price (In US Dollars)

2000 pcs: $1.552

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.552

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IRSM836-084MATR

Part Number	IRSM836-084MATR	Manufacturer	International Rectifier (Infineon Technologies)
Description	IC HALF-BRIDGE DRVR 3CH 36PQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23607 pcs	Data sheet	IRSM836-084MATR.pdf
Voltage - Supply	10 V ~ 20 V	Voltage - Load	200V (Max)
Technology	UMOS	Supplier Device Package	36-PQFN (12x12)
Series	µIPM™	Rds On (Typ)	310 mOhm
Packaging	Tape & Reel (TR)	Package / Case	36-PowerVQFN
Output Configuration	Half Bridge (3)	Other Names	SP001549934
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	24 Weeks
Load Type	Inductive	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Logic	Features	Bootstrap Circuit
Fault Protection	UVLO	Detailed Description	Half Bridge (3) Driver AC Motors UMOS 36-PQFN (12x12)
Current - Peak Output	27A	Current - Output / Channel	7A
Applications	AC Motors
