IRSM836-045MATR

International Rectifier (Infineon Technologies)

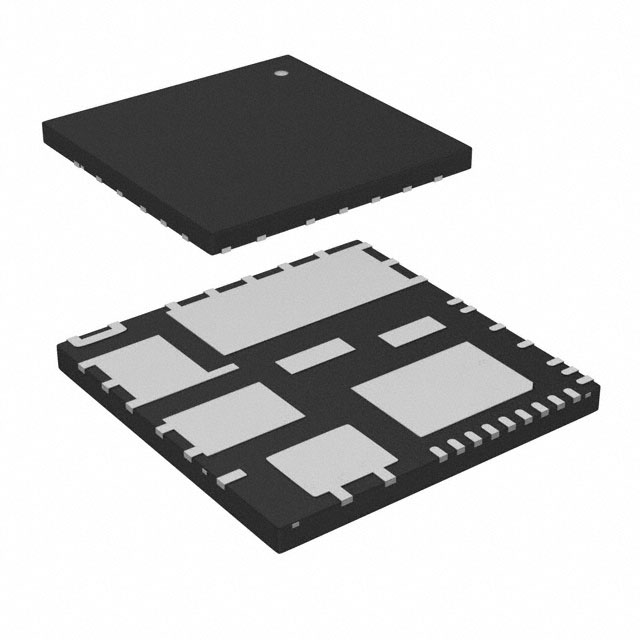

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IRSM836-045MATR
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	IC MOTOR DRIVER PAR 37-PQFN
Datasheets:	IRSM836-045MATR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20257 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 20257 pcs

Reference Price (In US Dollars)

2000 pcs: $1.926

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.926

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IRSM836-045MATR

Part Number	IRSM836-045MATR	Manufacturer	International Rectifier (Infineon Technologies)
Description	IC MOTOR DRIVER PAR 37-PQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20257 pcs	Data sheet	IRSM836-045MATR.pdf
Voltage - Supply	13.5 V ~ 16.5 V	Voltage - Load	400V (Max)
Technology	UMOS	Supplier Device Package	37-PQFN (12x12)
Step Resolution	-	Series	-
Packaging	Tape & Reel (TR)	Package / Case	37-PowerVQFN
Output Configuration	Half Bridge (3)	Other Names	SP001544294
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Motor Type - Stepper	-	Motor Type - AC, DC	AC, Synchronous
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	24 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	Parallel
Function	Driver - Fully Integrated, Control and Power Stage	Detailed Description	Motor Driver UMOS Parallel 37-PQFN (12x12)
Current - Output	4A	Base Part Number	IRSM836-045
Applications	Appliance
