Hirose

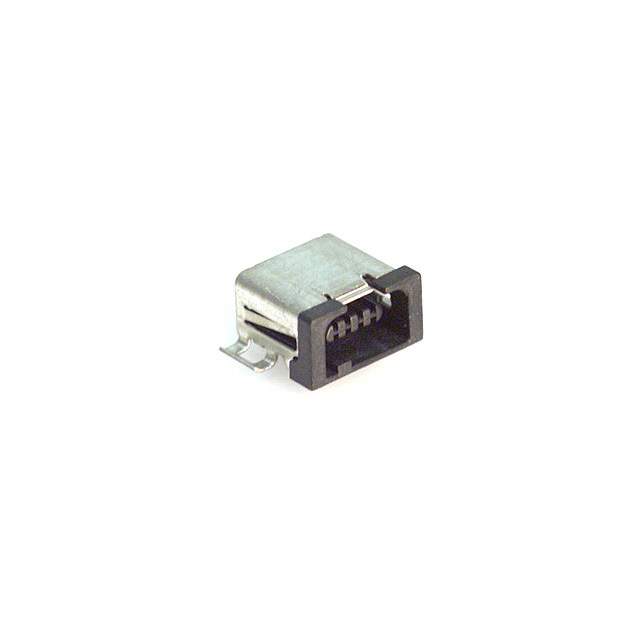

| Part Number | MQ172X-4PA(55) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 4POS SMT LOW PROFILE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4688 pcs | Data sheet | MQ172X-4PA(55).pdf |
| Voltage Rating | 30VDC, 40VAC | Termination | Solder |
| Style | Board to Cable/Wire | Series | MQ172 |
| Row Spacing - Mating | - | Pitch - Mating | 0.031" (0.80mm) |
| Packaging | Bulk | Other Names | *MQ172X-4PA(55) H10488 MQ172X4PA55 |
| Operating Temperature | -30°C ~ 75°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.154" (3.90mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Shielded, Solder Retention |
| Fastening Type | Friction Lock | Detailed Description | 4 Position Receptacle Connector 0.031" (0.80mm) Surface Mount, Right Angle Gold |
| Current Rating | 2A or 0.5A, 3A | Contact Type | Center Strip Contact |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Telecommunications |
