Hirose

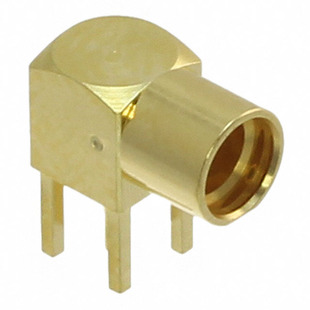

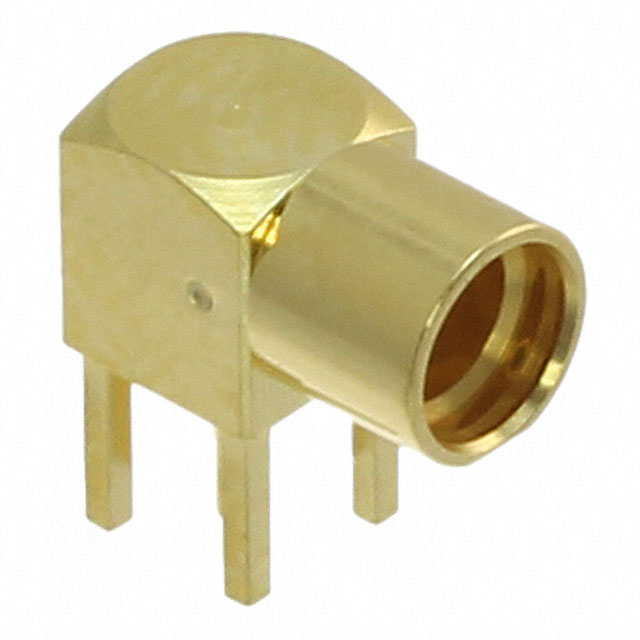

| Part Number | MMCX-LR-PC-1(40) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN MMCX RCPT R/A 50 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8634 pcs | Data sheet | MMCX-LR-PC-1(40).pdf |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 339-0013-6-40 H124203 MMCX-LR-PC-1(40)-ND |
| Operating Temperature | -55°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 6GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | MMCX Connector Receptacle, Female Socket 50 Ohm Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Receptacle, Female Socket |
| Connector Style | MMCX | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
