Hirose

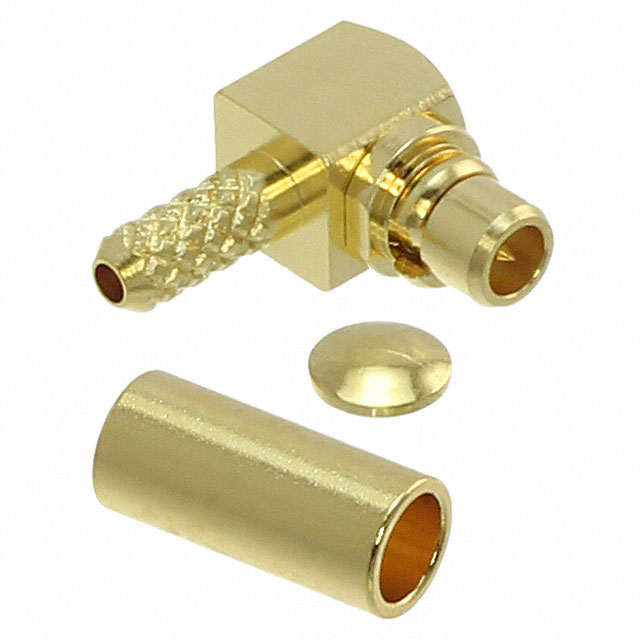

| Part Number | MMCX-LP-178B/U(40) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN MMCX PLUG R/A 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7977 pcs | Data sheet | MMCX-LP-178B/U(40).pdf |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | 339-0001-7-40 H124201 MMCX-LP-178B/U(40)-ND |
| Operating Temperature | -55°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 6GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | MMCX Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | MMCX | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Cable Group | RG-178B |
| Body Material | Brass | Body Finish | Gold |
