Hirose
| Part Number | FX30B-5S-3.81DS | Manufacturer | Hirose |
|---|---|---|---|

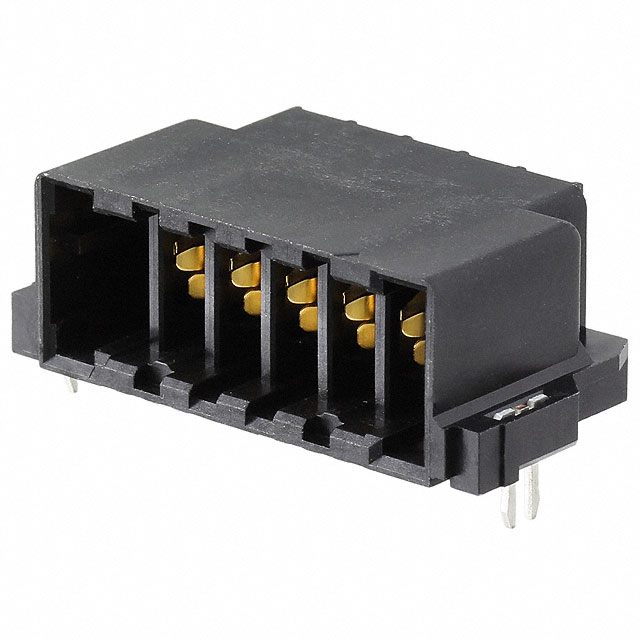

| Description | CONN RECEPT 5POS PCB R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16075 pcs | Data sheet | 1.FX30B-5S-3.81DS.pdf2.FX30B-5S-3.81DS.pdf3.FX30B-5S-3.81DS.pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Board | Series | FunctionMax™ FX30B |
| Row Spacing - Mating | - | Pitch - Mating | 0.150" (3.81mm) |
| Packaging | Tray | Other Names | H122224 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 5 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.433" (11.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Board Lock | Fastening Type | Latch Holder |
| Detailed Description | 5 Position Receptacle Connector 0.150" (3.81mm) Through Hole, Right Angle Gold | Current Rating | 13A |
| Contact Type | Female Blade Socket | Contact Shape | Rectangular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.130" (3.30mm) |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose |
