FX30B-5P-3.81DSA20

Hirose

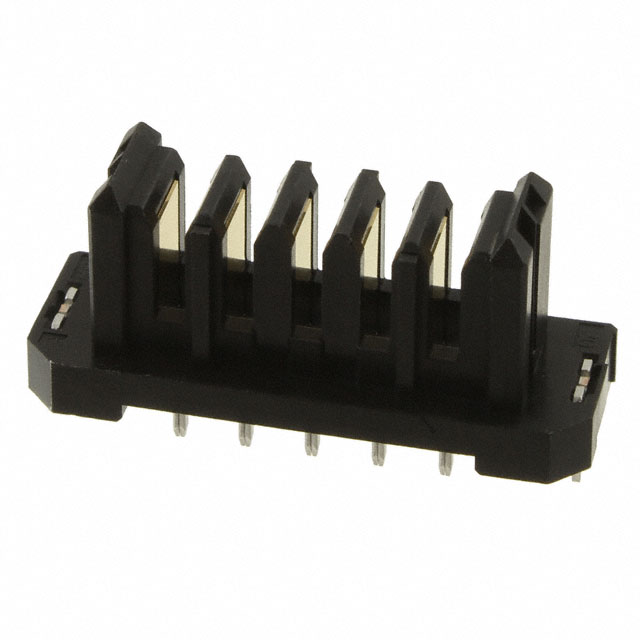

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FX30B-5P-3.81DSA20
Manufacturer/Brand:	Hirose
Product description	CONN HEADER 5POS PCB VERT
Datasheets:	1.FX30B-5P-3.81DSA20.pdf 2.FX30B-5P-3.81DSA20.pdf 3.FX30B-5P-3.81DSA20.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	22087 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 22087 pcs

Reference Price (In US Dollars)

1 pcs: $1.644

35 pcs: $1.447

105 pcs: $1.315

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.644

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FX30B-5P-3.81DSA20

Part Number	FX30B-5P-3.81DSA20	Manufacturer	Hirose
Description	CONN HEADER 5POS PCB VERT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22087 pcs	Data sheet	1.FX30B-5P-3.81DSA20.pdf 2.FX30B-5P-3.81DSA20.pdf 3.FX30B-5P-3.81DSA20.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Board	Shrouding	Shrouded - 2 Wall
Series	FunctionMax™ FX30B	Row Spacing - Mating	-
Pitch - Mating	0.150" (3.81mm)	Packaging	Tray
Overall Contact Length	-	Other Names	H122204
Operating Temperature	-55°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	20mm
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.559" (14.20mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide, Board Lock	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 5 position 0.150" (3.81mm)	Current Rating	13A
Contact Type	Male Blade	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	0.130" (3.30mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	39.4µin (1.00µm)
Contact Finish Thickness - Mating	3.90µin (0.099µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
