Hirose

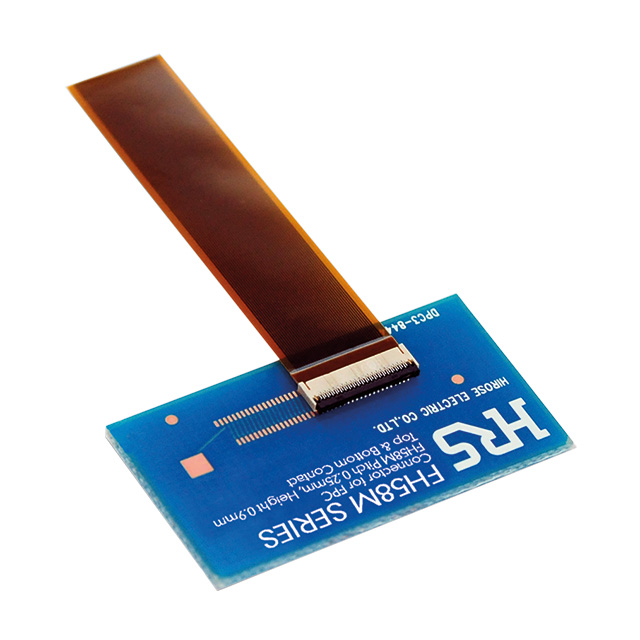

| Part Number | FH58M-7S-0.25SHW | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FPC 0.25MM SMD R/A 7POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 124557 pcs | Data sheet | 1.FH58M-7S-0.25SHW.pdf2.FH58M-7S-0.25SHW.pdf3.FH58M-7S-0.25SHW.pdf |
| Voltage Rating | 30V | Termination | Solder |
| Series | FH58M | Pitch | 0.010" (0.25mm) |
| Packaging | Tape & Reel (TR) | Other Names | 580-3811-0-00 |
| Operating Temperature | -55°C ~ 85°C | Number of Positions | 7 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 10 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 16 Weeks | Locking Feature | Flip Lock, Backlock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Housing Color | Beige | Height Above Board | 0.035" (0.88mm) |
| Flat Flex Type | FPC | Features | - |
| FFC, FCB Thickness | 0.20mm | Detailed Description | 7 Position FPC Connector Contacts, Top and Bottom 0.010" (0.25mm) Surface Mount, Right Angle |
| Current Rating | 0.2A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 1.18µin (0.030µm) | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Top and Bottom | Cable End Type | Notched |
| Actuator Material | Polyamide (PA), Nylon, Halogen Free | Actuator Color | Black |
