Hirose

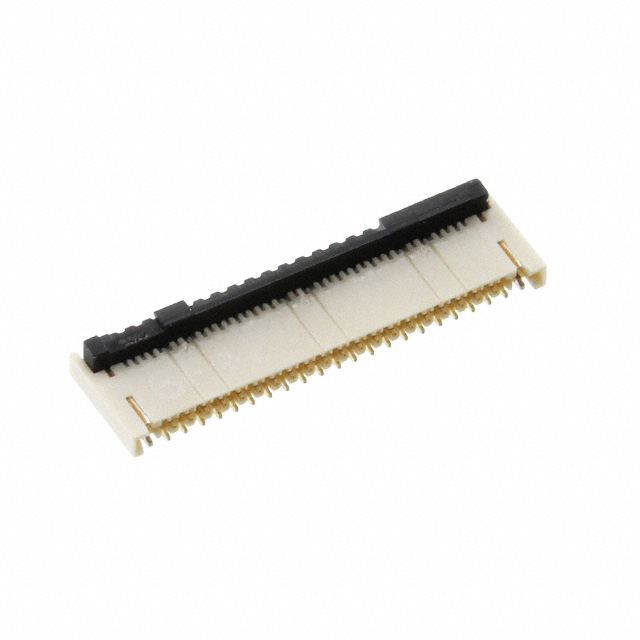

| Part Number | FH53-41S-0.2SHW(99) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FPC 41POS 0.2MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25806 pcs | Data sheet | 1.FH53-41S-0.2SHW(99).pdf2.FH53-41S-0.2SHW(99).pdf3.FH53-41S-0.2SHW(99).pdf |
| Voltage Rating | - | Termination | Solder |
| Series | FH53 | Pitch | 0.008" (0.20mm) |
| Packaging | Cut Tape (CT) | Other Names | H125307CT |
| Operating Temperature | -55°C ~ 85°C | Number of Positions | 41 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 10 | Material Flammability Rating | UL94 V-0, UL94 HB |
| Manufacturer Standard Lead Time | 16 Weeks | Locking Feature | Flip Lock, Backlock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Housing Color | Beige | Height Above Board | 0.026" (0.65mm) |
| Flat Flex Type | FPC | Features | - |
| FFC, FCB Thickness | 0.12mm | Detailed Description | 41 Position FPC Connector Contacts, Top 0.008" (0.20mm) Surface Mount, Right Angle |
| Current Rating | 0.2A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 1.18µin (0.030µm) | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Top | Cable End Type | Notched |
| Actuator Material | Polyamide (PA), Nylon, Halogen Free | Actuator Color | Black |
