FH29B-100S-0.2SHW(99)

Hirose

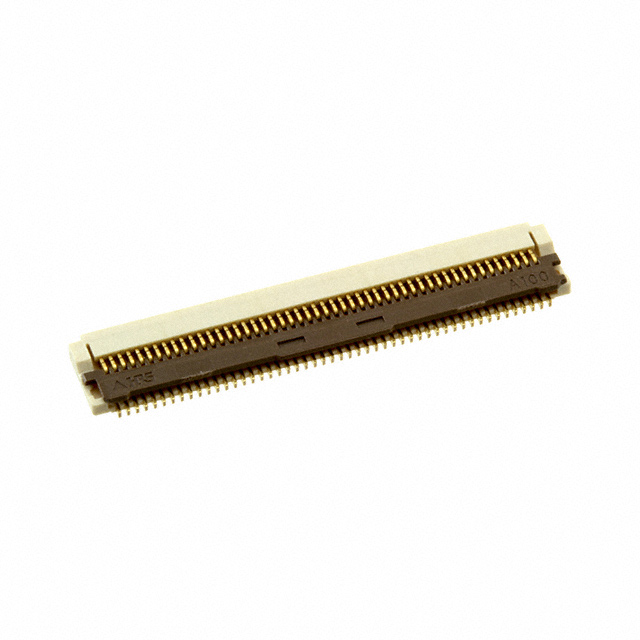

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FH29B-100S-0.2SHW(99)
Manufacturer/Brand:	Hirose
Product description	CONN FPC BOTTOM 100POS 0.20MM
Datasheets:	FH29B-100S-0.2SHW(99).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11814 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 11814 pcs

Reference Price (In US Dollars)

1 pcs: $2.926

10 pcs: $2.806

25 pcs: $2.562

50 pcs: $2.44

100 pcs: $2.318

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.926

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FH29B-100S-0.2SHW(99)

Part Number	FH29B-100S-0.2SHW(99)	Manufacturer	Hirose
Description	CONN FPC BOTTOM 100POS 0.20MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11814 pcs	Data sheet	FH29B-100S-0.2SHW(99).pdf
Voltage Rating	40V	Termination	Solder
Series	FH29B	Pitch	0.008" (0.20mm)
Packaging	Original-Reel®	Other Names	H124633DKR
Operating Temperature	-55°C ~ 85°C	Number of Positions	100
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	12 Weeks	Locking Feature	Flip Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP)
Housing Color	Beige	Height Above Board	0.047" (1.20mm)
Flat Flex Type	FPC	Features	Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.20mm	Detailed Description	100 Position FPC Connector Contacts, Bottom 0.008" (0.20mm) Surface Mount, Right Angle
Current Rating	0.25A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Bottom	Cable End Type	Tabbed
Actuator Material	Polyamide (PA), Nylon	Actuator Color	Brown
