Hirose

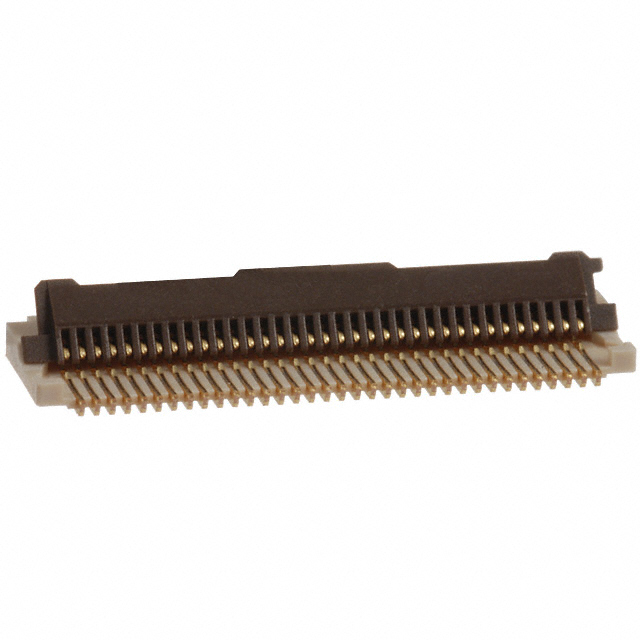

| Part Number | FH29-70S-0.2SHW(05) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FPC BOTTOM 70POS 0.20MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2818 pcs | Data sheet | 1.FH29-70S-0.2SHW(05).pdf2.FH29-70S-0.2SHW(05).pdf |
| Voltage Rating | 40V | Termination | Solder |
| Series | FH29 | Pitch | 0.008" (0.20mm) |
| Packaging | Tape & Reel (TR) | Other Names | HFD070TR |
| Operating Temperature | -55°C ~ 85°C | Number of Positions | 70 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | Beige |
| Height Above Board | 0.047" (1.20mm) | Flat Flex Type | FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 70 Position FPC Connector Contacts, Bottom 0.008" (0.20mm) Surface Mount, Right Angle | Current Rating | 0.25A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tabbed | Actuator Material | Polyamide (PA), Nylon |
| Actuator Color | Brown |
