Hirose

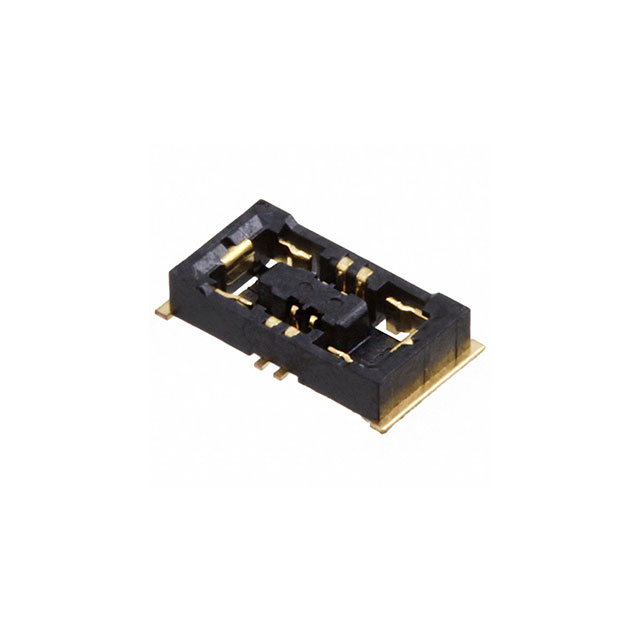

| Part Number | BM22-6S-V(53) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 6POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 152775 pcs | Data sheet | 1.BM22-6S-V(53).pdf2.BM22-6S-V(53).pdf3.BM22-6S-V(53).pdf |
| Voltage Rating | 50V | Termination | Solder |
| Style | Board to FPC | Series | BM22 |
| Row Spacing - Mating | - | Pitch - Mating | 0.016" (0.40mm) |
| Packaging | Tape & Reel (TR) | Other Names | H122452TR |
| Operating Temperature | -35°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 6 (4 + 2 Power) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 0.9mm |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.035" (0.90mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Friction Lock |
| Detailed Description | 6 (4 + 2 Power) Position Receptacle Connector Surface Mount Gold | Current Rating | 0.3A Signal, 4A Power |
| Contact Type | Center Strip Contact | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 1.97µin (0.050µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
