Hirose

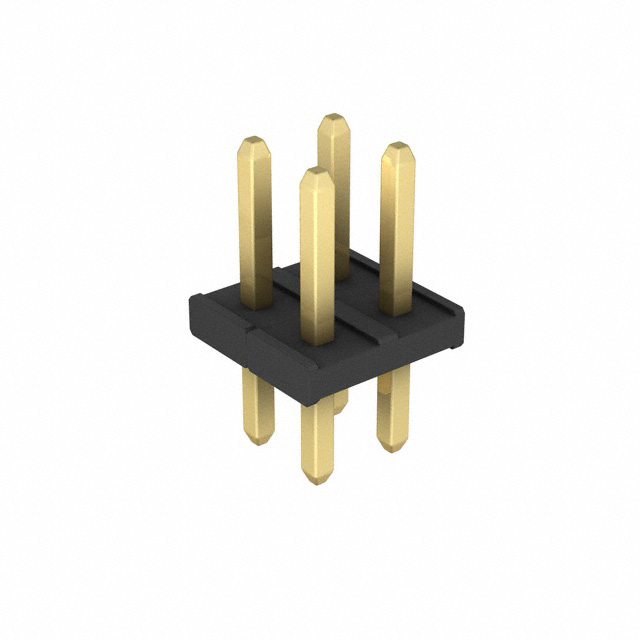

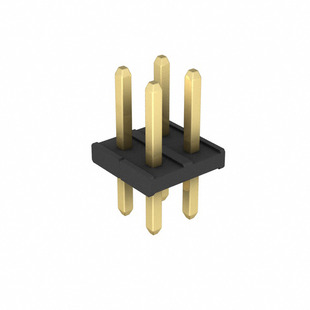

| Part Number | A3C-4P-2DSA | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 4POS 2MM GOLD DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6366 pcs | Data sheet | A3C-4P-2DSA.pdf |
| Voltage Rating | 200V | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | A3 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
| Overall Contact Length | 0.276" (7.00mm) | Other Names | *A3C-4P-2DSA 621-0602-3-00 A3C4P2DSA H1808 |
| Operating Temperature | -55°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 5.1mm, 7.9mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.035" (0.90mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 4 position 0.079" (2.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.102" (2.60mm) | Contact Length - Mating | 0.138" (3.50mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
