Hirose

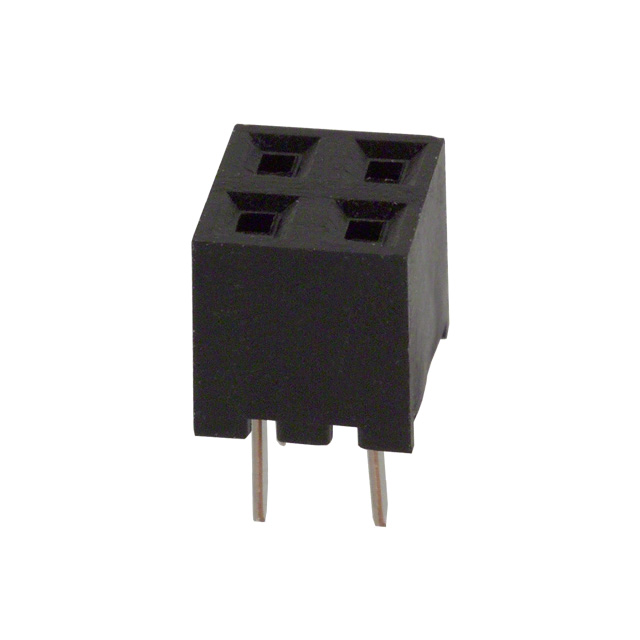

| Part Number | A3C-4DA-2DSA(71) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 4POS 2MM GOLD DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70064 pcs | Data sheet | 1.A3C-4DA-2DSA(71).pdf2.A3C-4DA-2DSA(71).pdf3.A3C-4DA-2DSA(71).pdf |
| Voltage Rating | 200VAC | Termination | Solder |
| Style | Board to Board or Cable | Series | A3 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | H10891 |
| Operating Temperature | -55°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 5.1mm, 6mm |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.165" (4.20mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 4 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | 1A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose, Telecommunications |
