Harwin

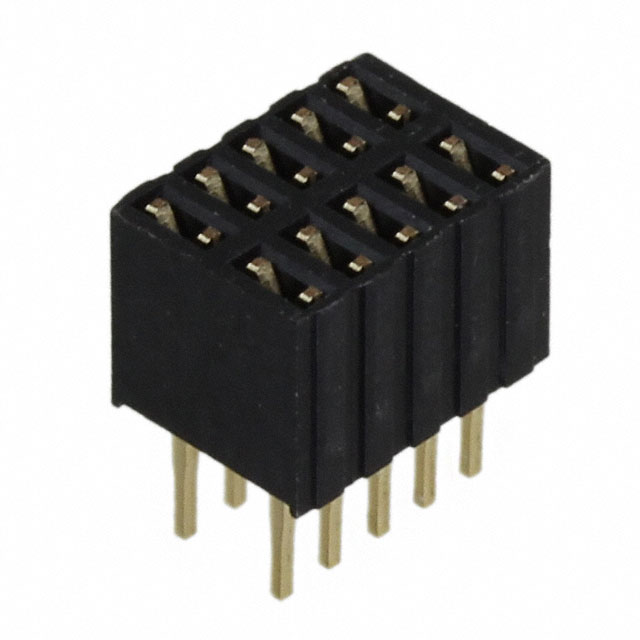

| Part Number | M52-5100545 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN RCPT 10POS T/H 1.27MM GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76077 pcs | Data sheet | 1.M52-5100545.pdf2.M52-5100545.pdf3.M52-5100545.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | Archer M52 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Other Names | 952-2869 M52-5100545-ND |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.181" (4.60mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 10 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold | Current Rating | 1A |
| Contact Type | Forked | Contact Shape | Rectangular |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose, Medical, Telecommunications |
