Harwin
| Part Number | M52-5100445 | Manufacturer | Harwin |
|---|---|---|---|

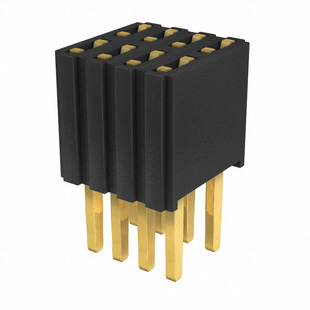

| Description | CONN RCPT 8POS T/H 1.27MM GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 170183 pcs | Data sheet | 1.M52-5100445.pdf2.M52-5100445.pdf3.M52-5100445.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | Archer M52 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.181" (4.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 8 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold |
| Current Rating | 1A | Contact Type | Forked |
| Contact Shape | Rectangular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Medical, Telecommunications |
