Harwin

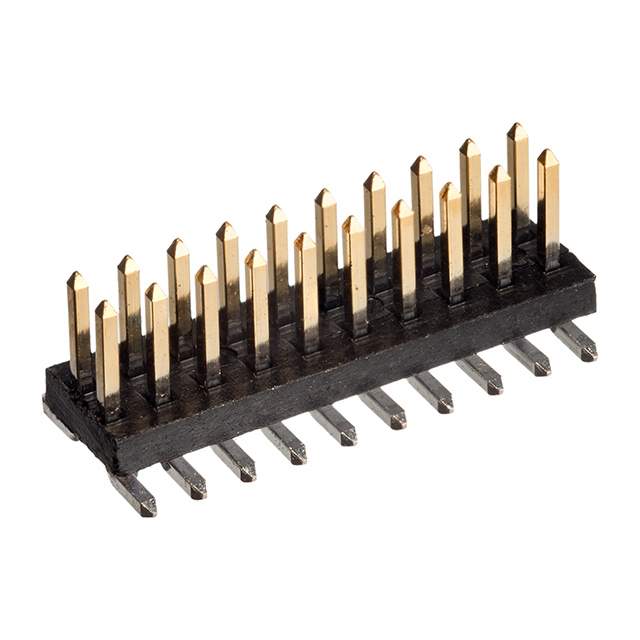

| Part Number | M50-3611042R | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR 1.27MM SMD AU 20POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52527 pcs | Data sheet | 1.M50-3611042R.pdf2.M50-3611042R.pdf3.M50-3611042R.pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | Archer M50 | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tape & Reel (TR) |
| Overall Contact Length | - | Other Names | 952-3094-2 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.039" (1.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 20 position 0.050" (1.27mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | 0.118" (3.00mm) | Contact Finish Thickness - Post | 80.0µin (2.03µm) |
| Contact Finish Thickness - Mating | 1.00µin (0.025µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
