H8505-01

Harwin

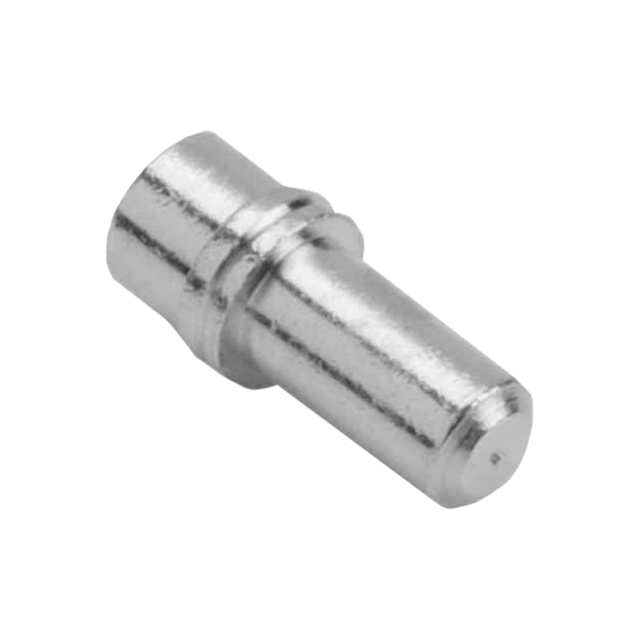

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H8505-01
Manufacturer/Brand:	Harwin
Product description	CONN PIN RCPT .023-.033 SOLDER
Datasheets:	1.H8505-01.pdf 2.H8505-01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	211069 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 211069 pcs

Reference Price (In US Dollars)

1 pcs: $0.184

10 pcs: $0.173

25 pcs: $0.156

50 pcs: $0.139

100 pcs: $0.133

250 pcs: $0.121

500 pcs: $0.116

1000 pcs: $0.095

2500 pcs: $0.087

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.184

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H8505-01

Part Number	H8505-01	Manufacturer	Harwin
Description	CONN PIN RCPT .023-.033 SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	211069 pcs	Data sheet	1.H8505-01.pdf 2.H8505-01.pdf
Termination	Solder	Tail Type	No Tail
Tail Diameter	-	Socket Depth	0.130" (3.30mm)
Series	-	Pin Hole Diameter	-
Packaging	Bulk	Other Names	952-1462 H850501
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.075" ~ 0.079" (1.91mm ~ 2.01mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.232" (5.89mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Force	1.50N ~ 5.01N	Flange Diameter	0.105" (2.67mm)
Features	-	Detailed Description	Pin Receptacle Connector 0.023" ~ 0.033" (0.60mm ~ 0.85mm) No Tail Solder
Contact Material	Beryllium Copper	Contact Finish Thickness	5.90µin (0.150µm)
Contact Finish	Gold	Board Thickness	-
Accepts Square Pin Size	-	Accepts Pin Diameter	0.023" ~ 0.033" (0.60mm ~ 0.85mm)
